PCE®

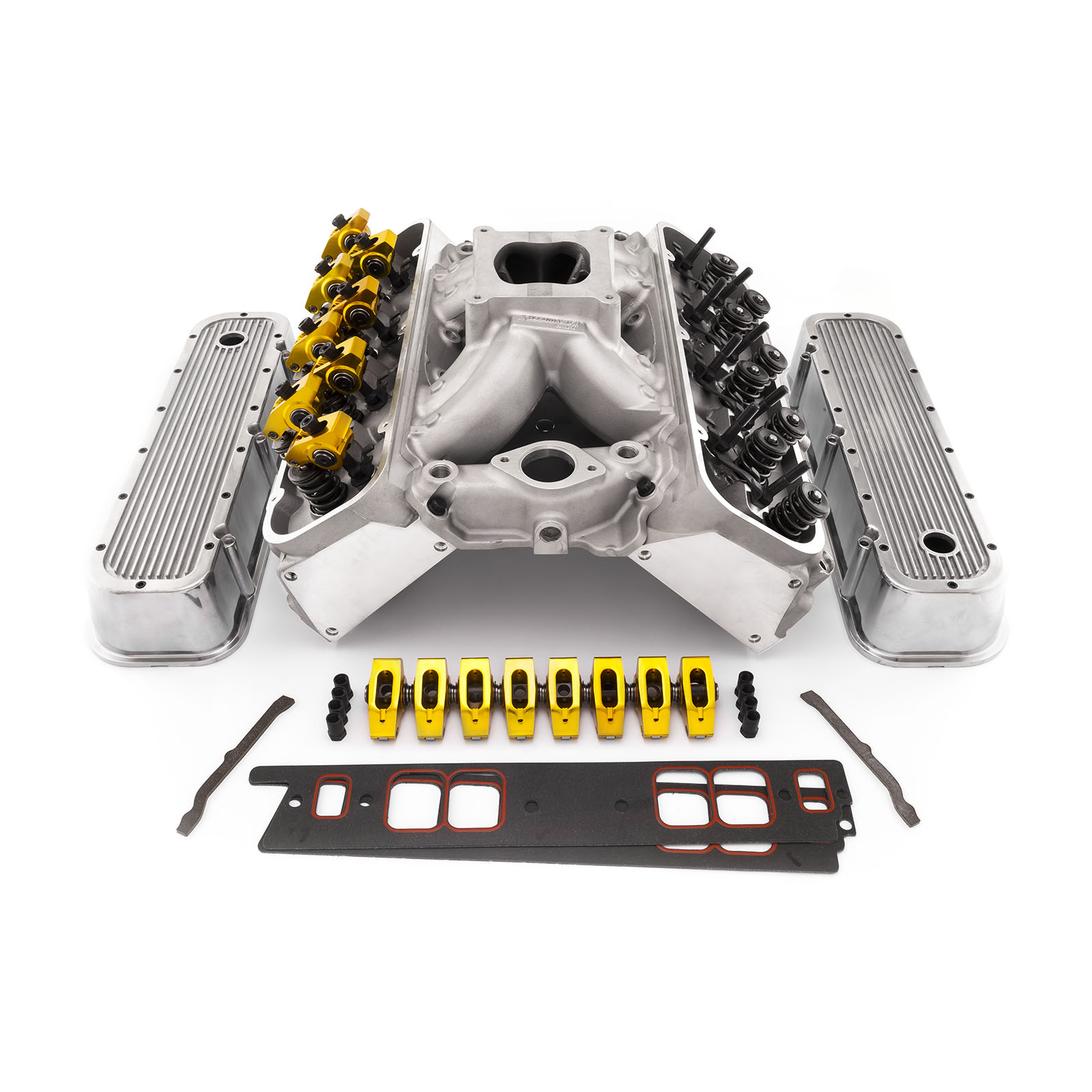

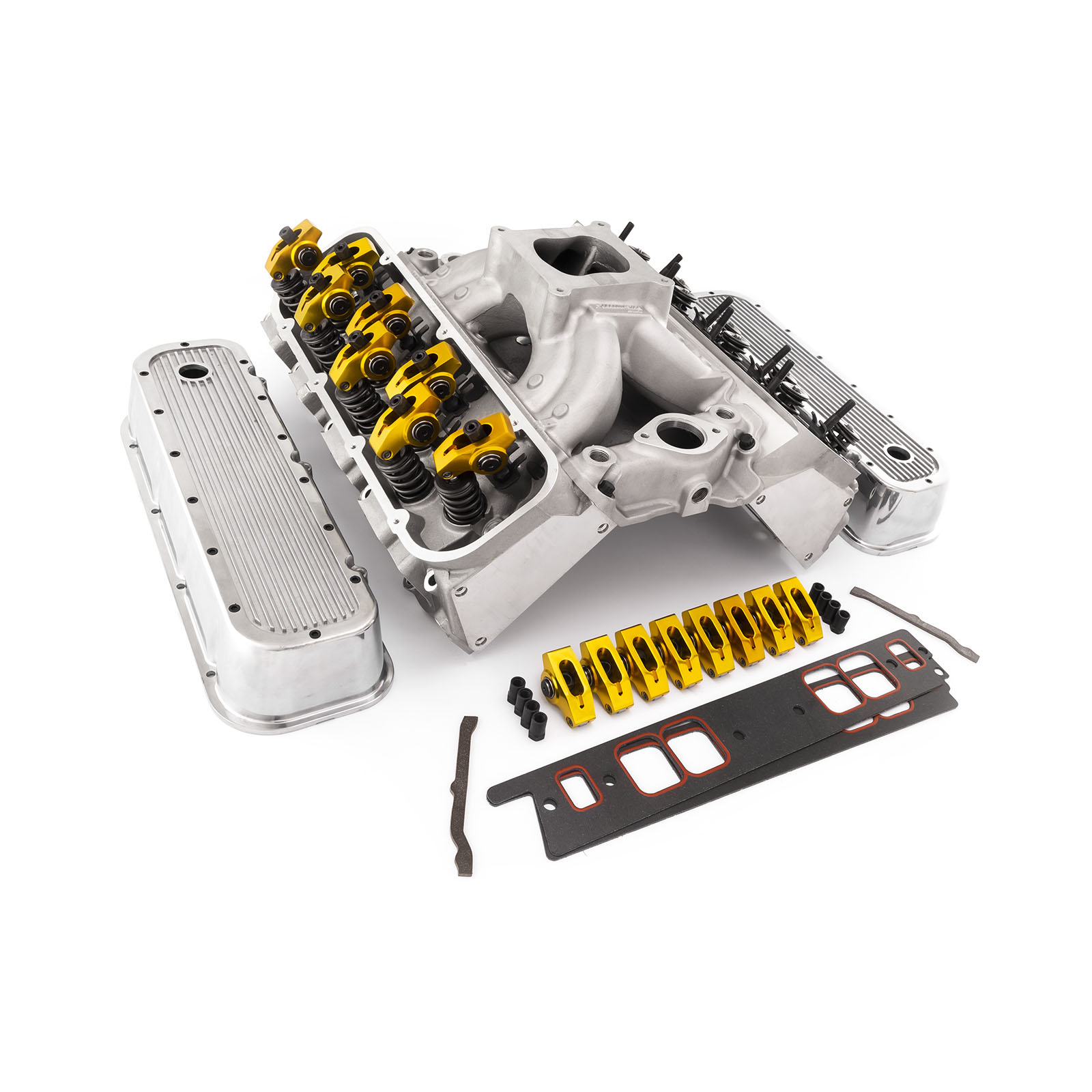

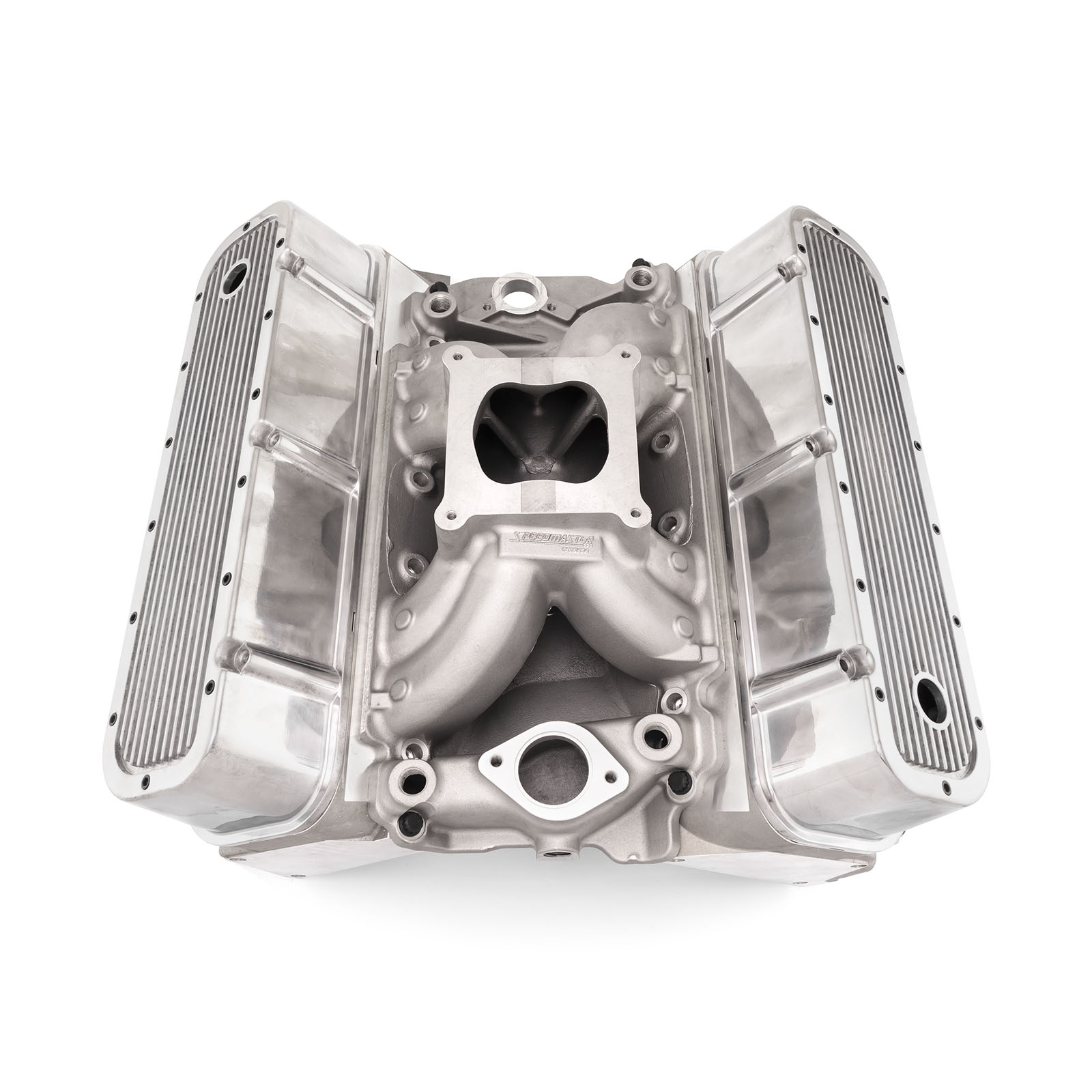

Chevy BBC 454 Hyd Roller Cylinder Head Top End Engine Combo Kit

No Reviews yet
MPN: PCE435.1071 UPC: 840136554073
Available Extended Warranty Eligible
US $1,155.00 US $1,650.00
You Save US $495.00 (30%)Single Points Earn 1155 Points Info (outlined)

Build to Order

Wear The Colors Promo

  • Free Keychain with Any Purchase

  • Spend $100 for a free Eco Bag

  • Spend $150 for a free Lanyard

  • Spend $250 for a free Wristband Keychain

*Get all 4 items when you spend $250 or more

Overview

Don't spend hours figuring out which pieces and parts you need to get what you want from your engine. PCE has already done the work for you; our Top-End engine kits will save you the time and hassle of mixing and matching components yourself. These kits are specifically designed to deliver the performance you want, at a better price than purchasing the parts separately.

Specs

Brand:PCE
Part Number: PCE435.1071
Part Type:Cylinder Head Combos
Product Line:Street Series
Camshaft Included:No
Intake Manifold Included:Yes
Fuel Delivery Style:Carbureted
Intake Material:Aluminum
Intake Finish:Satin
Manifold Carburetor Quantity:One
Intake Style:Single plane
Intake Basic Operating RPM Range:3,000-7,500
Intake Manifold Height:6.060 in.
Intake Manifold Model (descriptive):PCE - Shootout Series
Timing Chain and Gears Included:No
Lifters Included:No
Gaskets Included:Yes
Cylinder Head Style:Assembled
Cylinder Head Material:Aluminum
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):119 cc
CNC-Machined Combustion Chamber:No
Intake Runner Volume (cc):320 cc
CNC-Machined Intake Runner:No
CNC-Machined Exhaust Runner:No
Intake Port Shape:Rectangular
Intake Port Location:Standard
Exhaust Port Shape:Rectangular
Exhaust Port Location:Raised
Spark Plug Style:Angle
Comp. Valve Job: No
Intake Valves Included:Yes
Intake Valve Diameter (in):2.250 in.
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.880 in.
Intake Valve Angle:24 deg.
Exhaust Valve Angle:15 deg.
Valve Springs Included:Yes
Outside Diameter of Outer Spring (in):1.550 in.
Damper Spring Included:Yes
Number of Springs Per Valve:Dual
Retainers Included:Yes
Retainer Material:Chromoly steel
Locks Included:Yes
Lock Style:10 degree
Valve Stem Seals Included:Yes
Valve Stem Seal Style:Positive stop

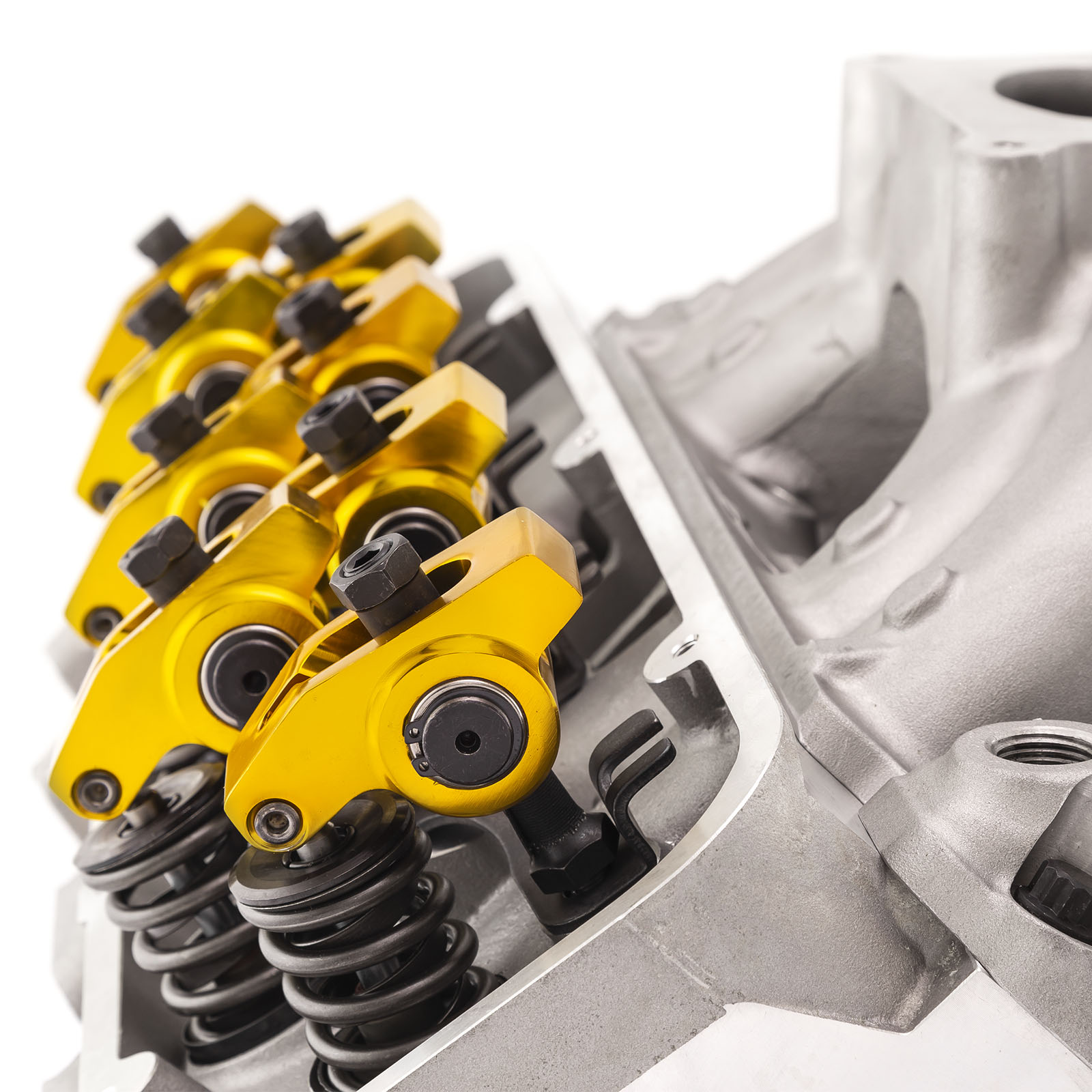

Rocker Arms Included:Yes
Rocker Arm Studs Included:Yes
Rocker Arm Nuts Included:Yes
Rocker Arm Nut Thread Size:7/16 in.
Guideplates Included:Yes
Guideplate Pushrod Size:3/8 in.
Pushrods Included:No
Valve Covers Included:Yes
Valve Cover Material:Cast aluminum
Valve Cover Finish:Polished
Valve Cover Mounting Style:Perimeter bolt
Accessory Bolt Holes Drilled:Yes
Valve Guides Included:Yes
Valve Guide Material:Bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Steam Holes Drilled:No
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Cylinder Head Bolts Included:No
Quantity:Sold as a kit.
Calculator:CFM Calculator
CalculatorCompression Calculator

Brand Information



Founded in Sydney Australia with one CNC Machine increasing to sixty 5-Axis CNC machines before being acquired in 2013. The Company’s main focus has always been "Speed to Market", launching 1,200+ new products each year. Needing just one month to develop a new product and get it on to the shelf, compared to the six-month industry average. PCE has a policy of zero advertising, preferring to invest a percentage of revenues in new product development. These products being white-labeled to most of the biggest brands in the business.
