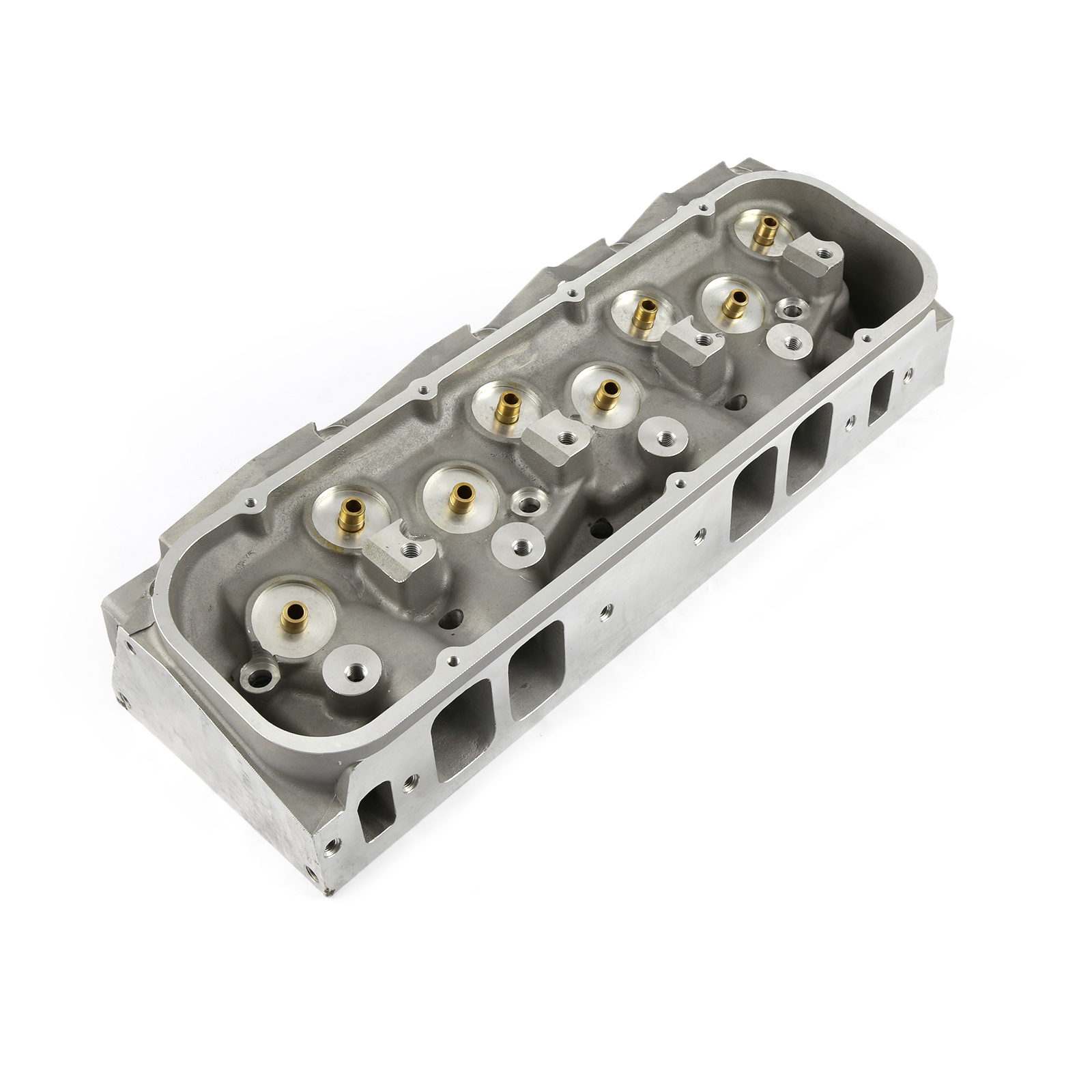

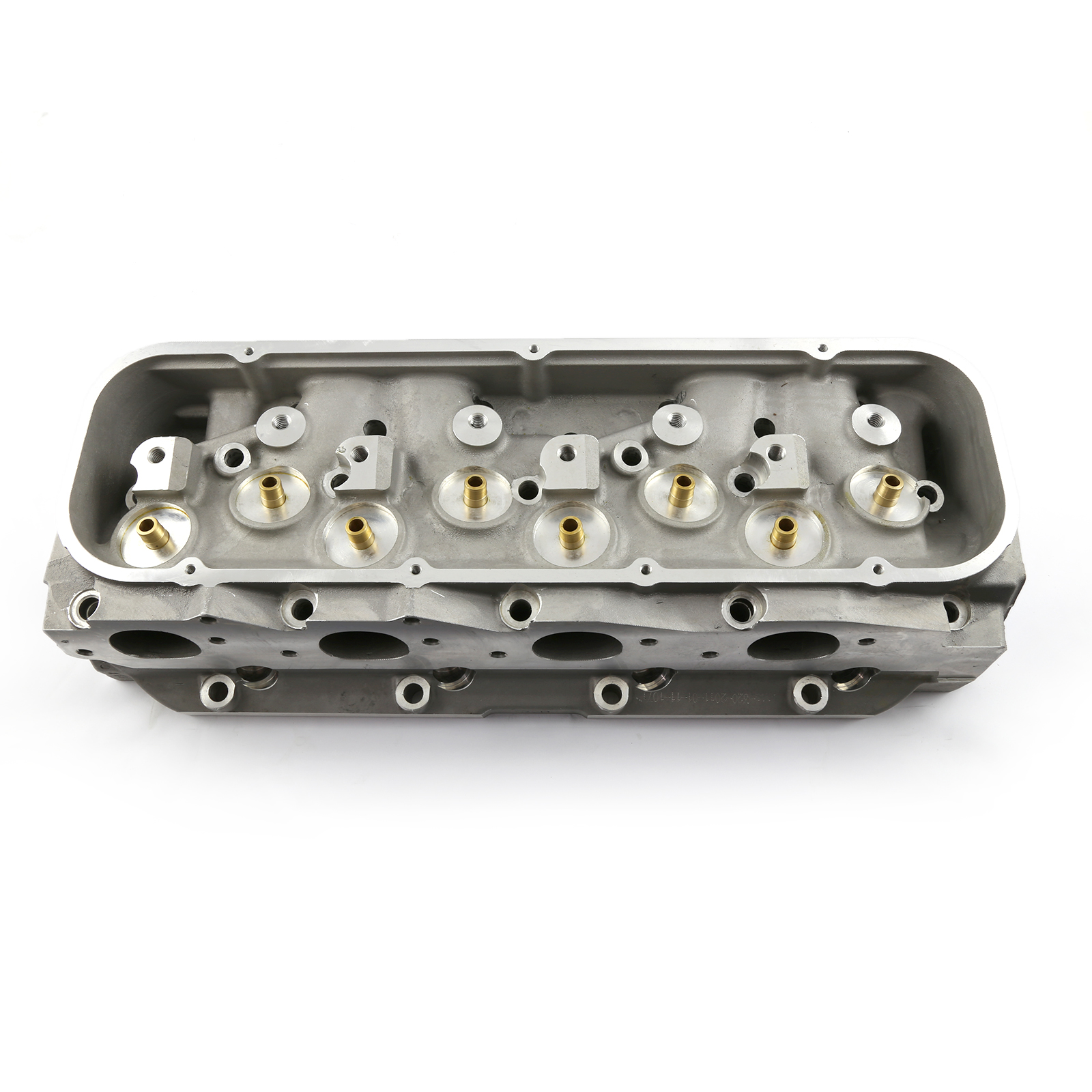

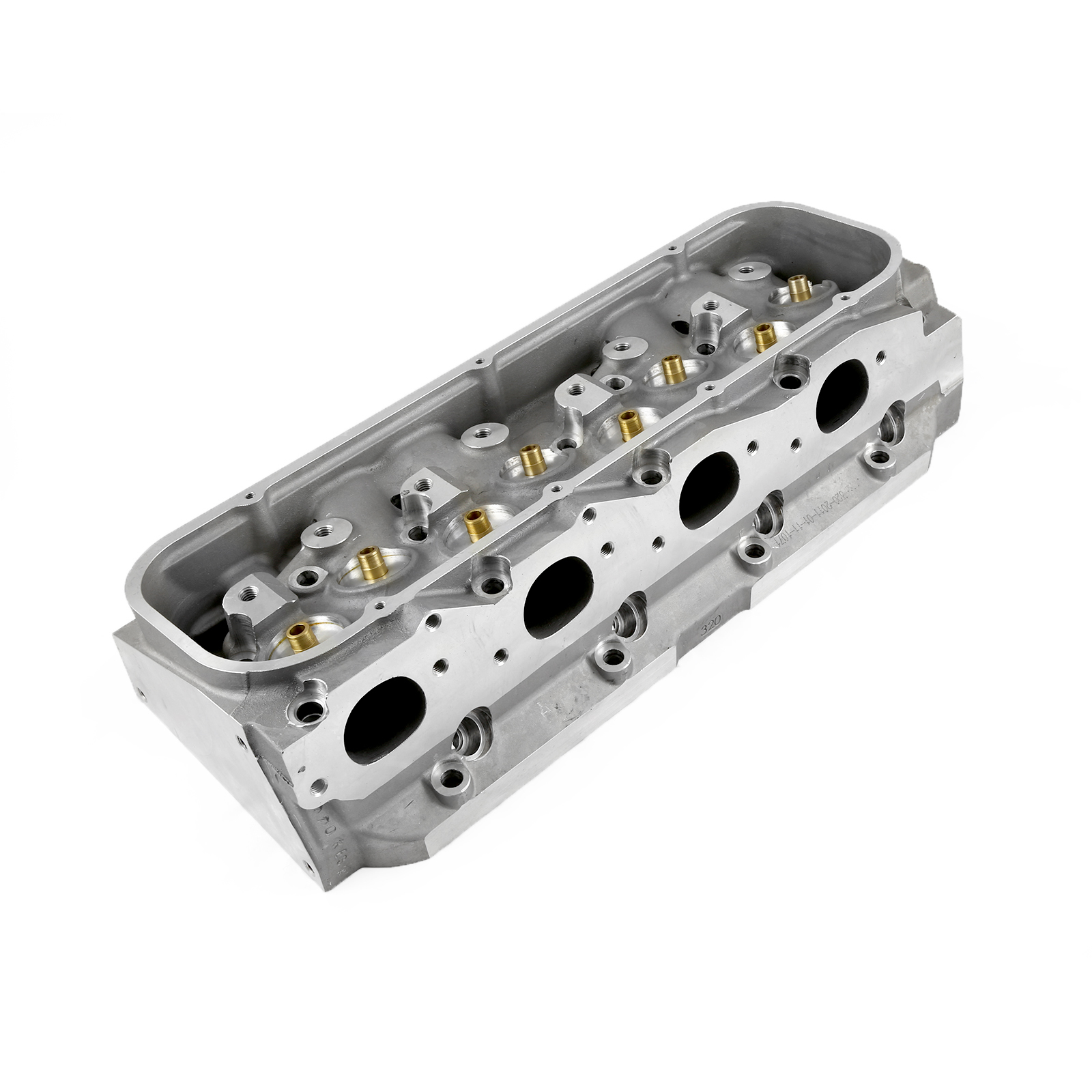

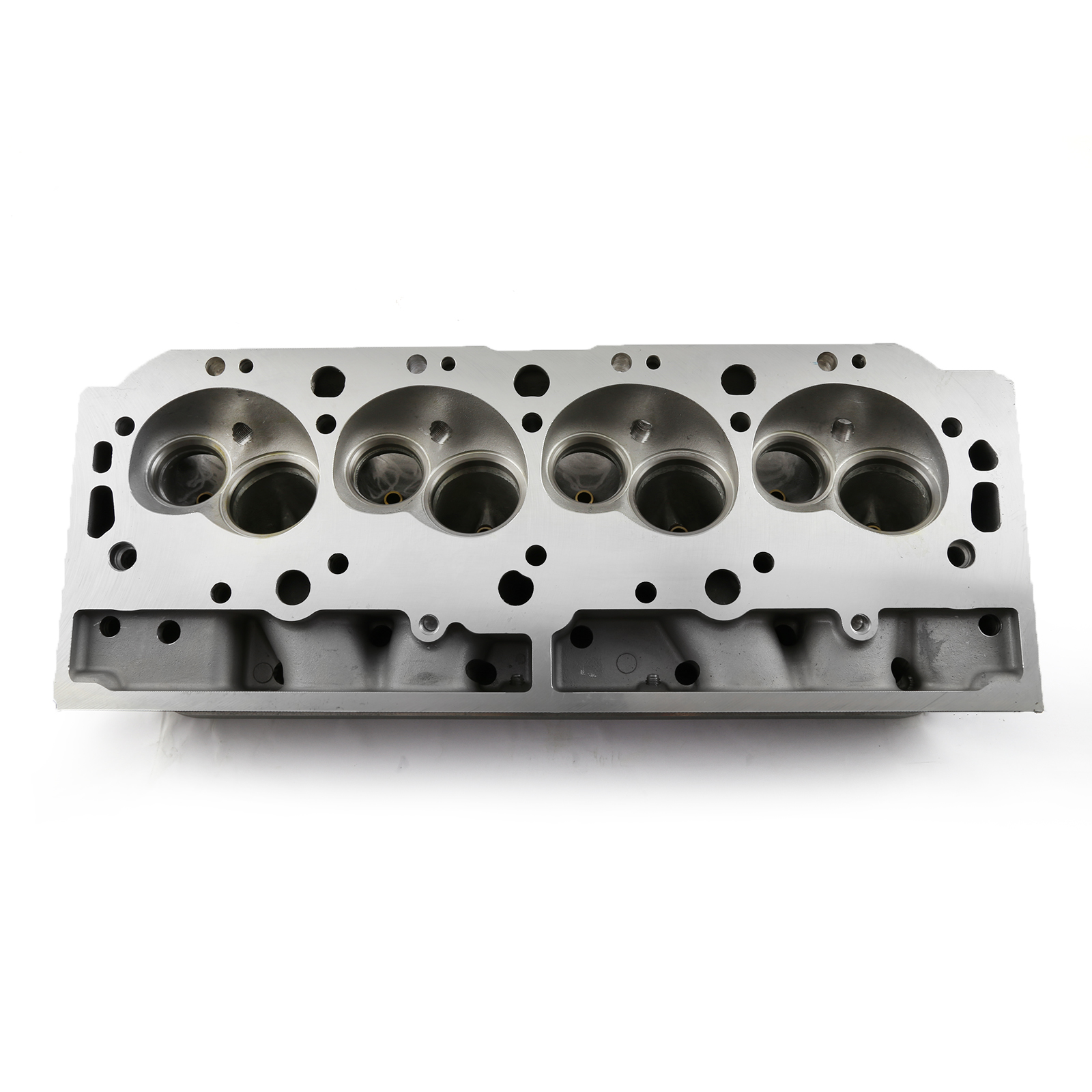

Chevy BBC 454 360cc 115cc Aluminum Bare Cylinder Head

HEAD GASKETS
Due to the wide combustion chamber needed to fit around the large 2.250/ 1.880" valves, we recommend our PCE348.1004 MLS head gaskets. These gaskets are .041" thick, and fit bore sizes as large as 4.540" on all Mark IV and VI blocks, as well as aftermarket blocks. Felpro 1017 gaskets will also work with these head/ block combos. To install our BBC heads on Mark V blocks, you will need to use our SM5233L and SM5233R Elite Series MLS head gaskets. Alternatively, you can use Victor Reinz # 4918(R) & #4923(L) head gaskets on Mark V blocks with our heads.

INTAKE GASKETS
The PCE281.1488 heads work well with our PCE349.1007 rectangle port gaskets. The PCE281.1489 heads require our PCE349.1008 oval port gaskets. If you prefer Felpro gaskets, the PCE281.1488 heads take a 1275 or 1275-5 gasket, depending on the thickness you require.

The CNC-ported heads (PCE281.1511 & PCE281.1523) are matched to the Felpro 1275 & 1275-5 gaskets.

SPARK PLUGS
Our heads require the use of 14mm. x 3/4" reach 5/8" hex gasket seat sparkplugs. Some recommended plugs are; NGK BCPR6ES or R5671A-7, Champion RC12YC, Autolite AR3923 or AR3924. Remember these are for mild street engines. Higher compression or boost requires colder sparkplugs!

HEAD BOLTS / STUDS
Due to the raised (+.625") exhaust port location on our heads, +.100" longer bolts / studs are needed next to each port. Use our PCE279.1005 head stud Kit. ARP #135-3703 12pt. Head bolts, and #235-4303 Head studs work too. If you already have a standard BBC head stud kit and are just looking for the 8 +.100" studs, use our PCE279.1006 or ARP # 235-4306. These heads should be torqued to 65ft.lbs. using high pressure moly lube or 70ft.lbs. using 30wt. oil.

Please consult your fastener manufacturer for their specific recommended torque values.

EXHAUST GASKETS
Our BBC heads utilize a 1.88" x 1.88" square exhaust port. This exhaust port requires specific gaskets. Our PCE355.1003 gaskets are made of re-useable copper, or if you prefer paper, use our pn# SM5123. Felpro also offers gaskets that work with our heads as # 1410.
