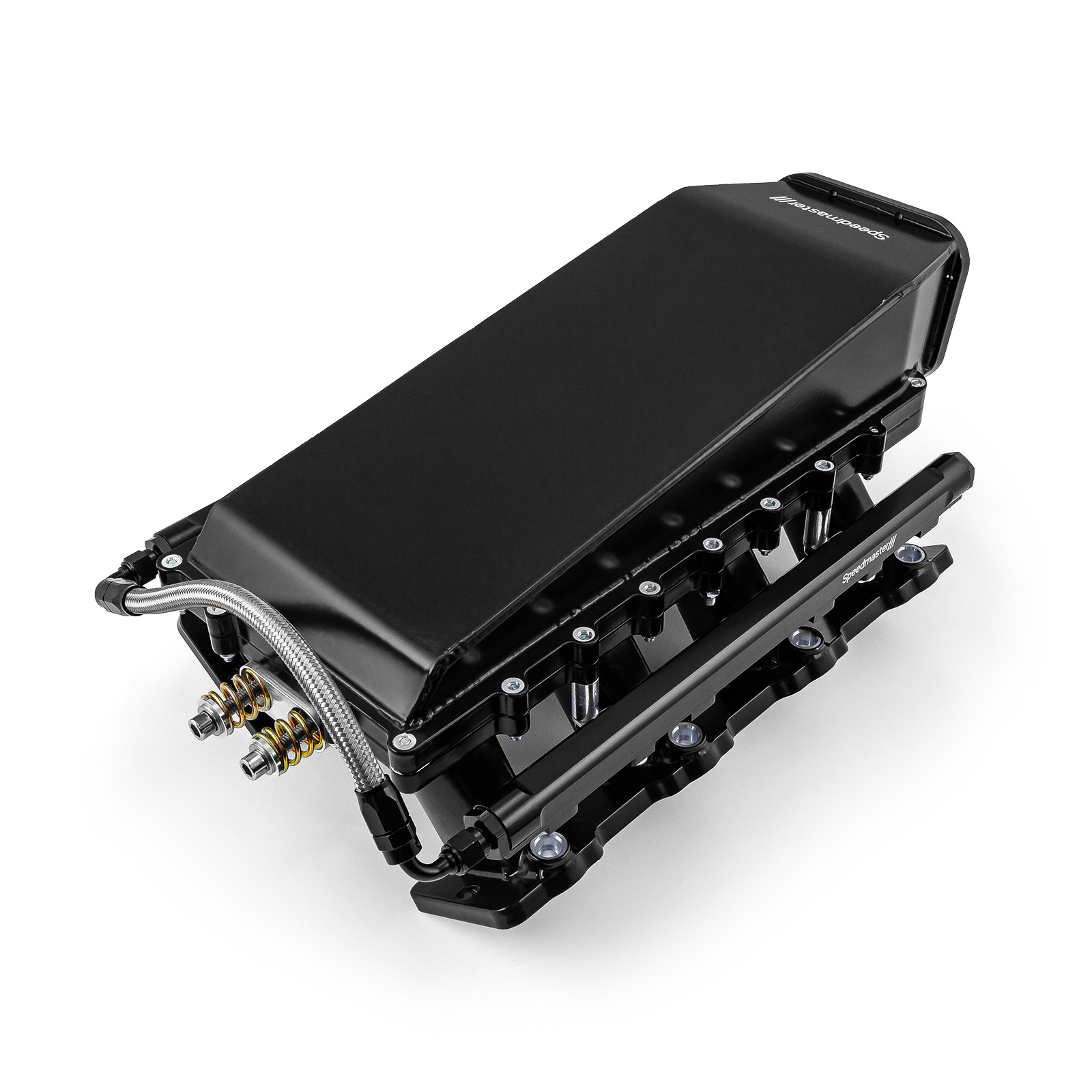

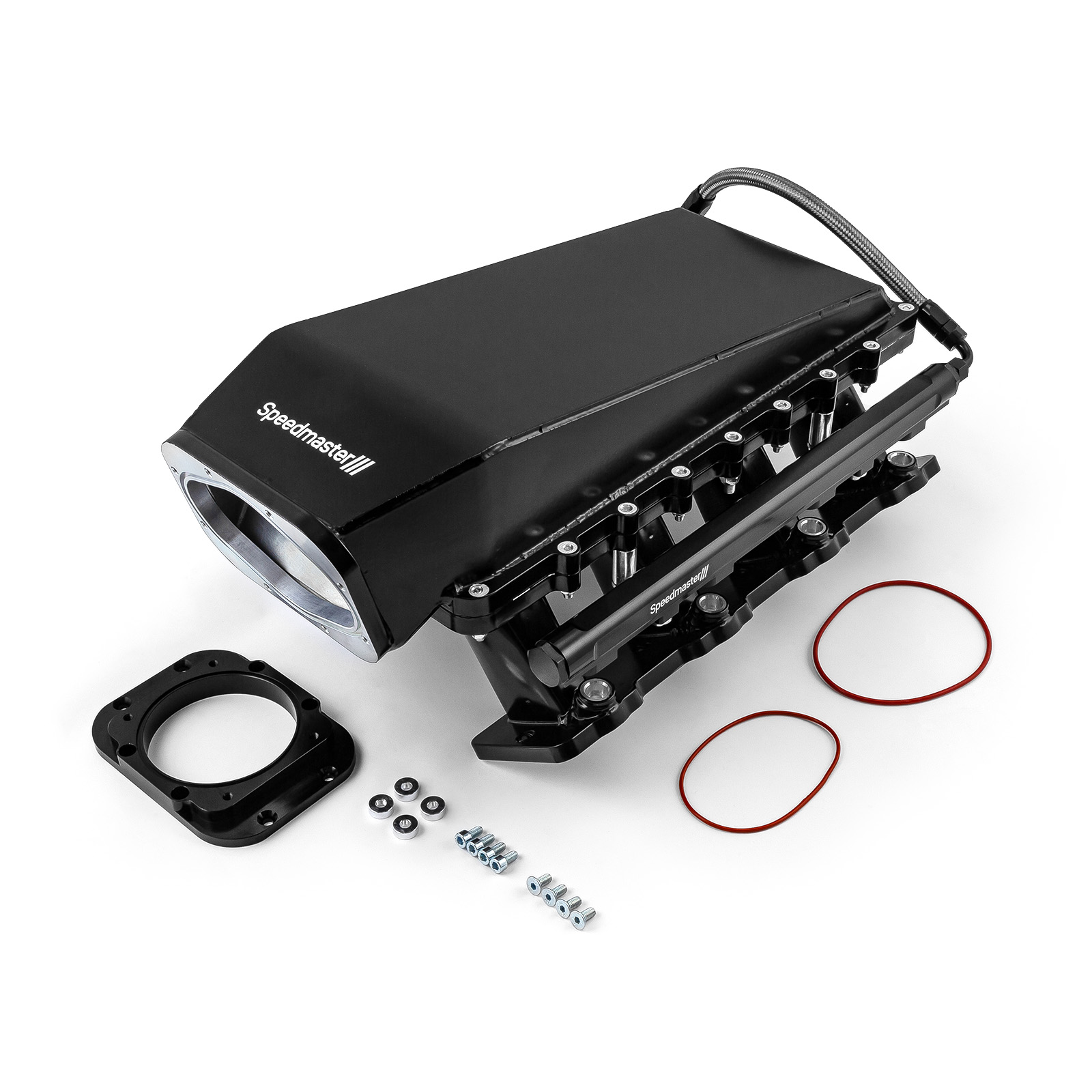

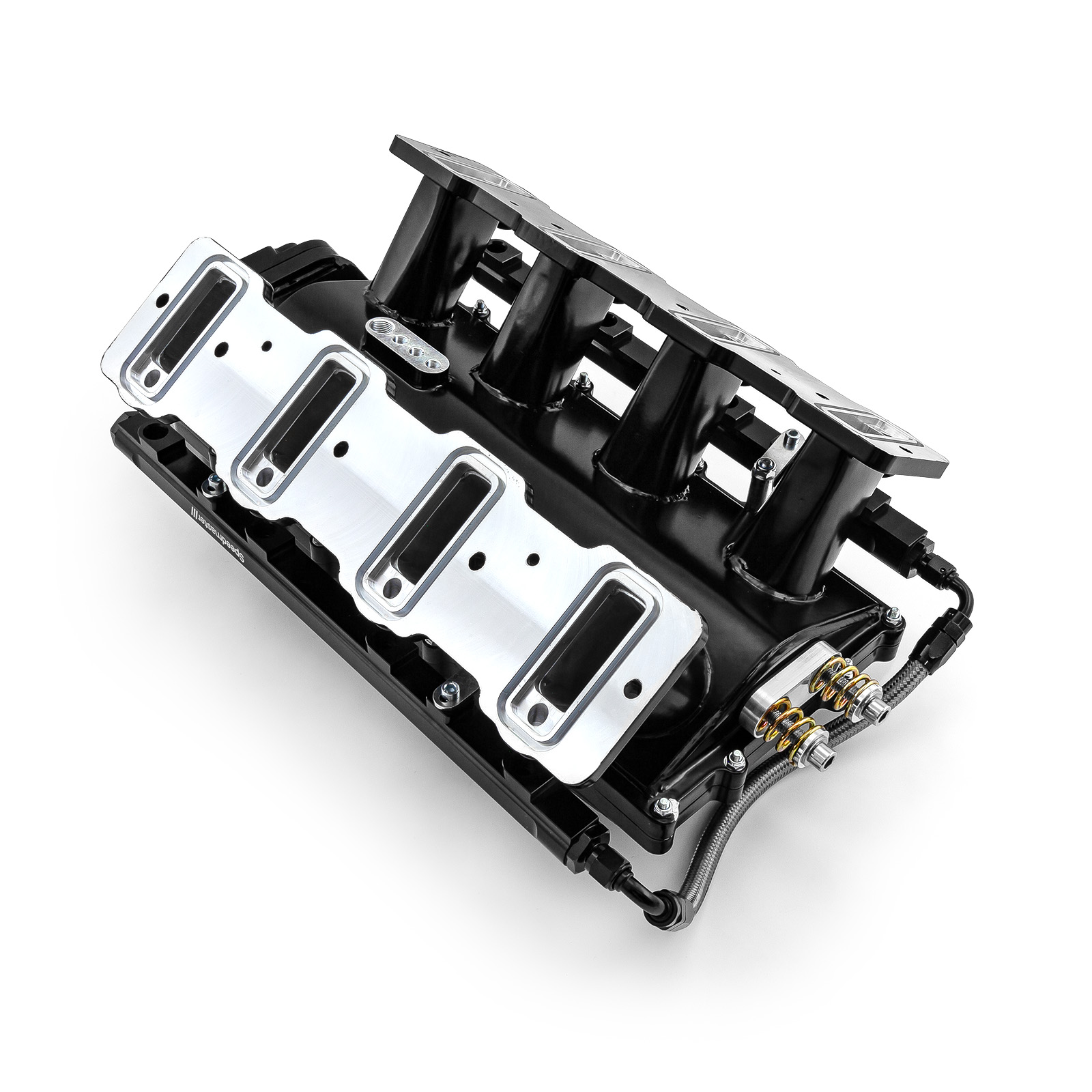

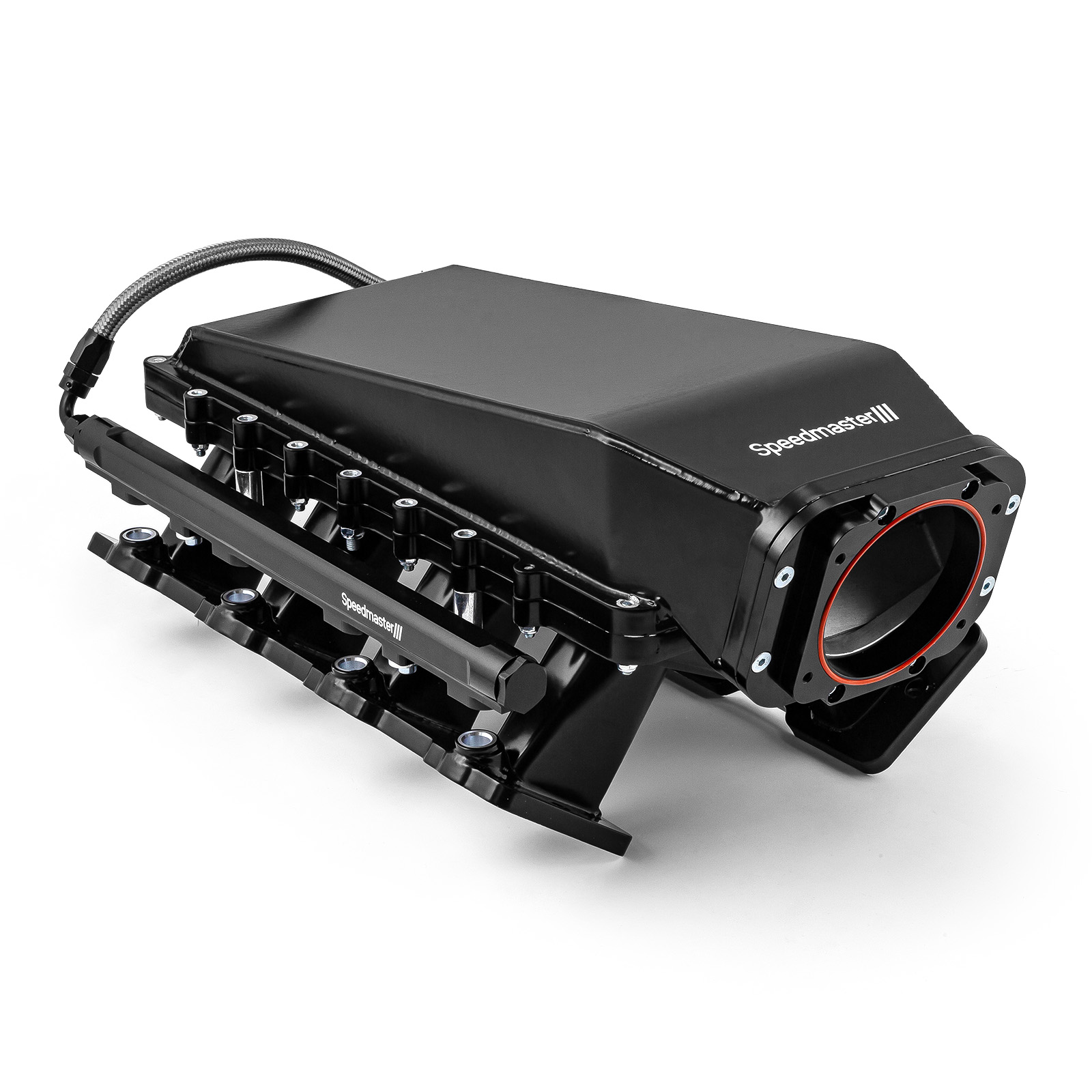

Chevy LS1 2pc Fabricated Ram Air 98mm 4 Bolt EFI Intake Manifold Black

No Reviews yet
MPN: 1-148-050-02 UPC: 840136562122
Available Extended Warranty Eligible
US $550.00

Build to Order


The GM LS1 Modular Ram Air Intake Manifold was designed for high-performance applications where induction system height is not limited. Couple this Hi-Ram intake with the high flowing LS1 style cylinder heads has outstanding potential for naturally aspirated and forced induction applications. The runner length and the tapered cross-section were designed to perform well for a wide range of engine configurations.


Part Number:1-148-050
Part Type:Intake Manifolds, Fuel Injected
Engine Block Style:LS1
Injection Style:Multi-port
Basic Operating RPM Range:Idle-7,000
Intake Section Included:Complete
Intake Front Height (in.):10.00
Intake Rear Height (in.):6.25
Injectors Included:No
Fuel Rails Included:Yes
Aftermarket Fuel Rail Required:N/A
Throttle Body Included:No
Throttle Body Bore Diameter:98mm
Supplemental Bosses Cast-In:No
Supplemental Bosses Machined:Yes
Runners Included:Yes
Runners Removable:No
Base Material:Aluminum
Base Finish:Polished
Quantity:Sold Individually
Notes:Intake manifold O-rings not included.
