Speedmaster®

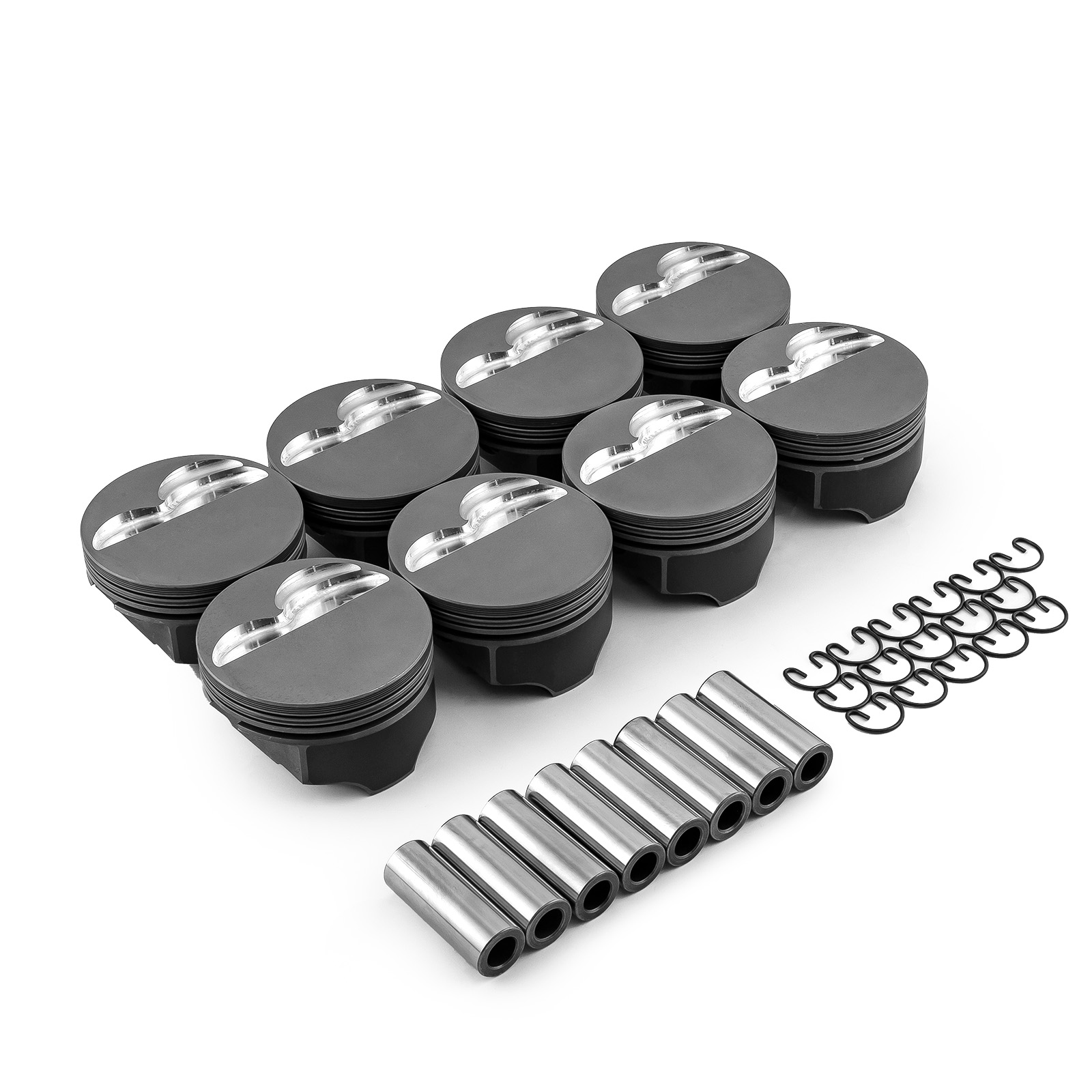

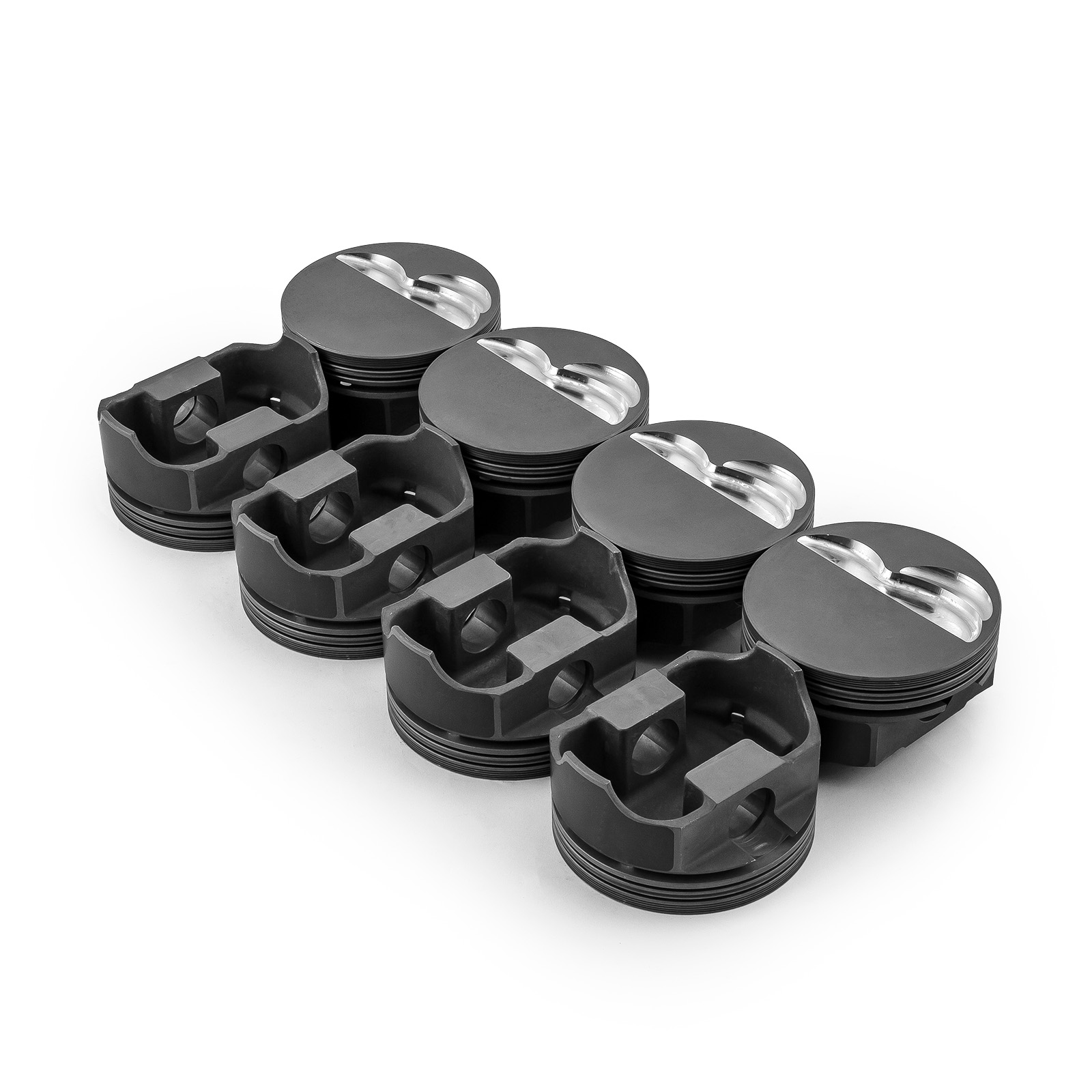

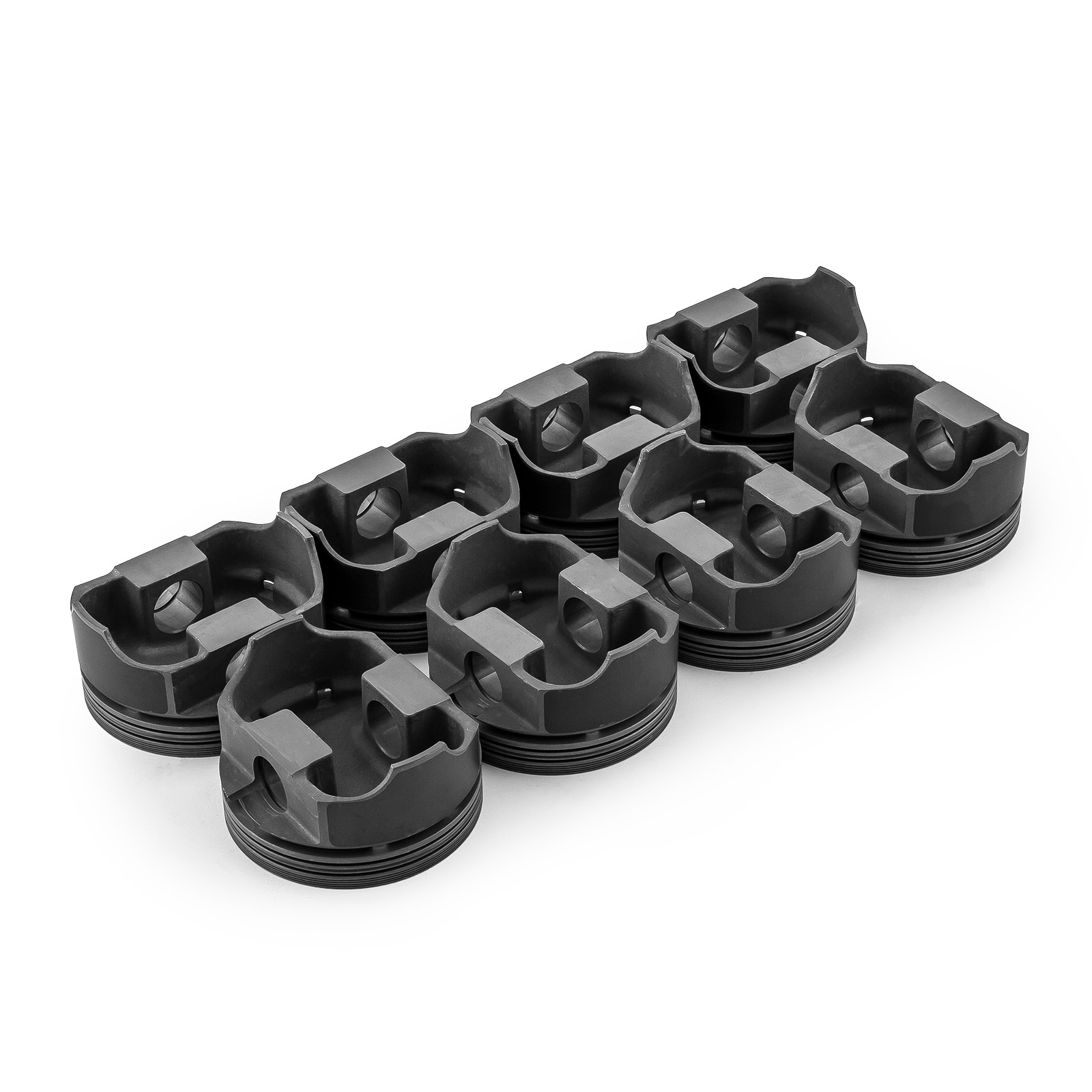

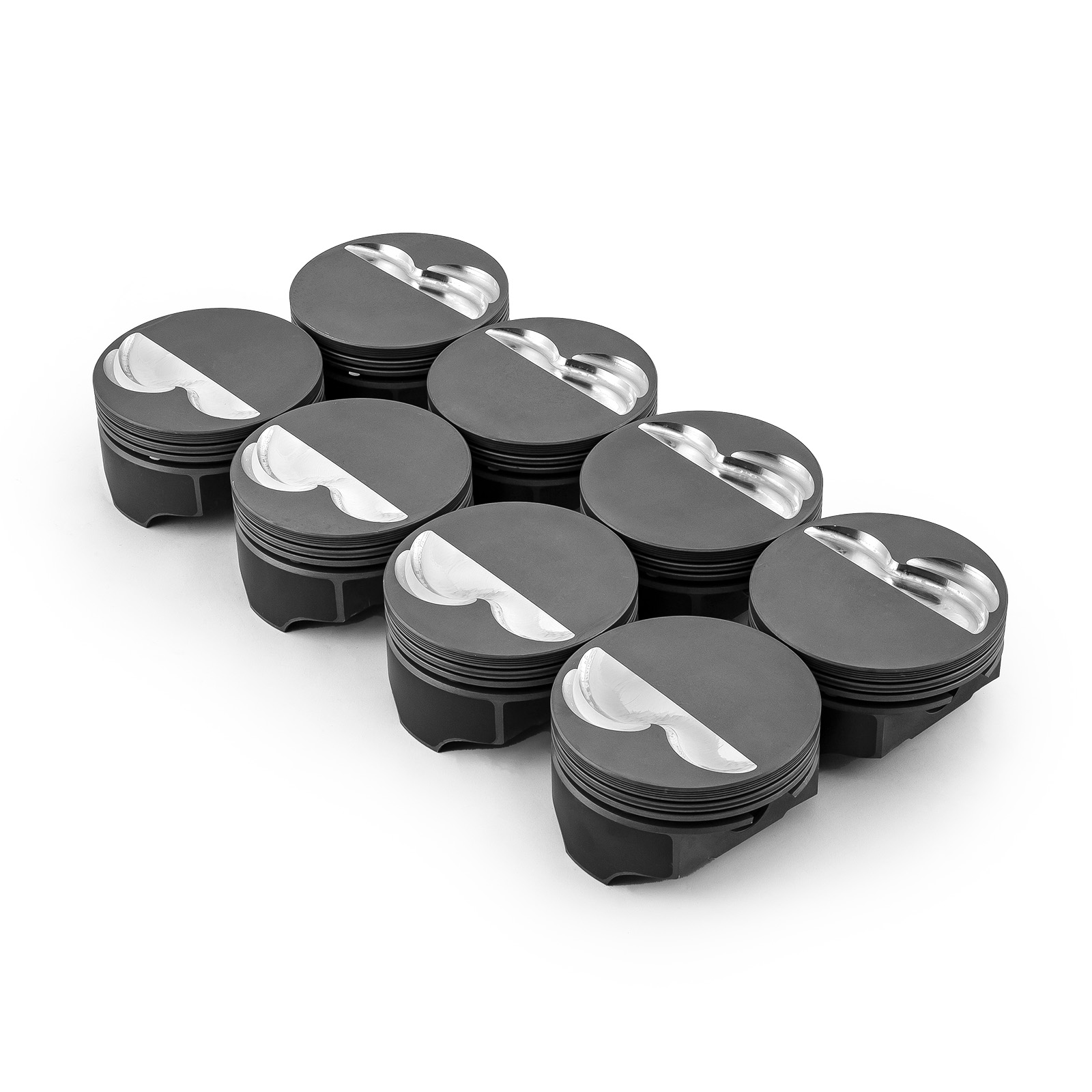

Chevy SBC 383 ci 6.0" 4.040" 1.100" 0.927" Flat Top Hyper Pistons [Coated]

1 Review

Specs

Brand:	Speedmaster
Part Number:	PCE305.1008
Part Type:	Pistons

Bore (in):	4.040 in.
Piston Style:	Flat top, with two valve reliefs
Piston Material:	2060 Hypereutectic aluminum
Compression Distance (in):	1.100 in.
Piston Head Volume (cc):	-4.00cc
Max Rod Length (in):	6.000 in.
Wrist Pin Style:	Full Floating
Pin Diameter (in):	0.927 in.
Piston Ring Thickness:	1/16 in. x 1/16 in. x 3/16 in. or 1.5mm x 1.5mm x 3mm
Quantity:	Sold as a set of 8.
Calculator	Compression Calculator

Back

Description

Hypereutectic pistons with anti-friction skirt coating are manufactured from a aluminum alloy which contains 16 percent silicon for greater strength and wear resistance. By combining the hypereutectic alloy with the permanent mold process, the piston is strong, lightweight, and thermally-efficient. These pistons run tighter piston-to-wall clearances, improving ring seal and longevity. They are ideal for street, bracket racers and oval track.
