Speedmaster®

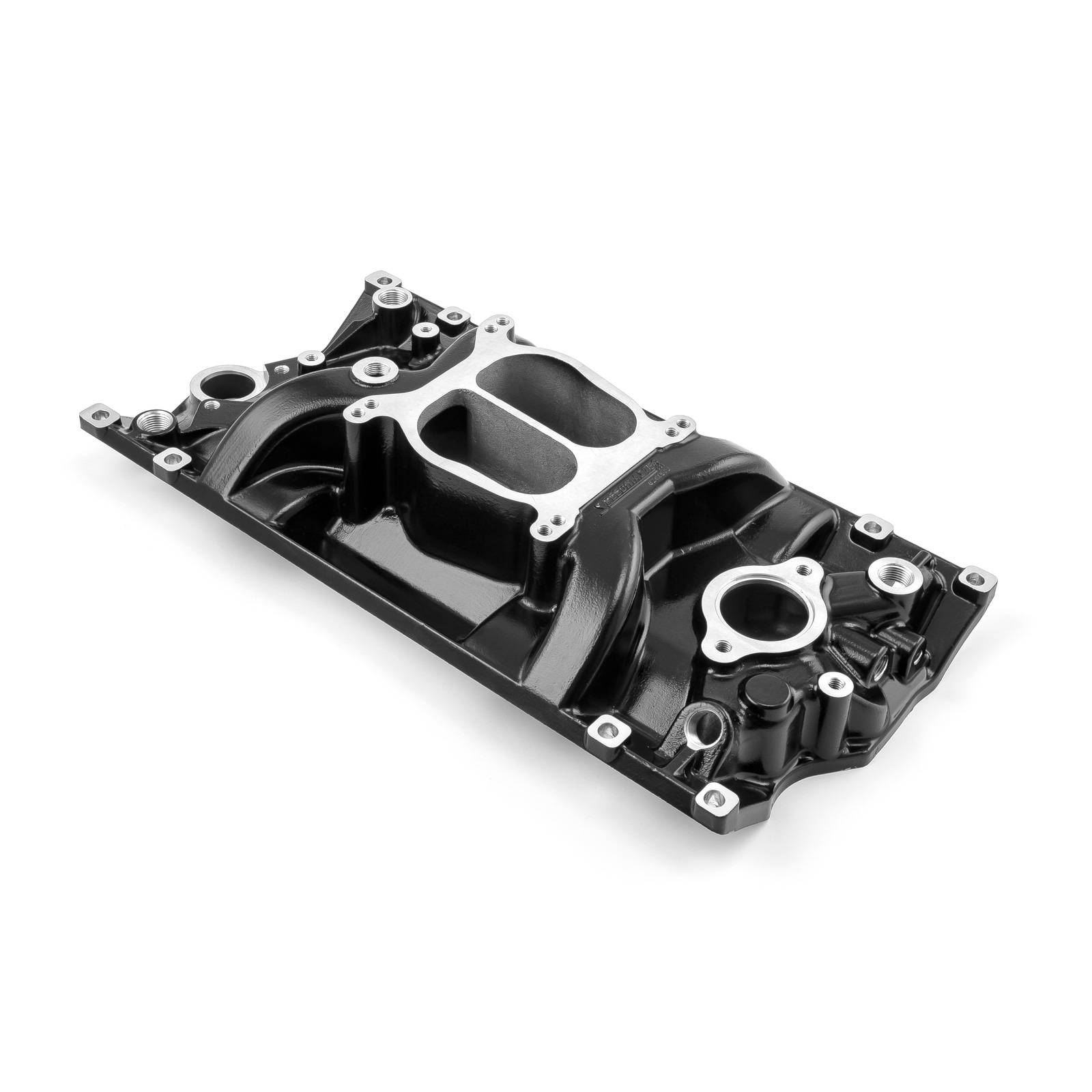

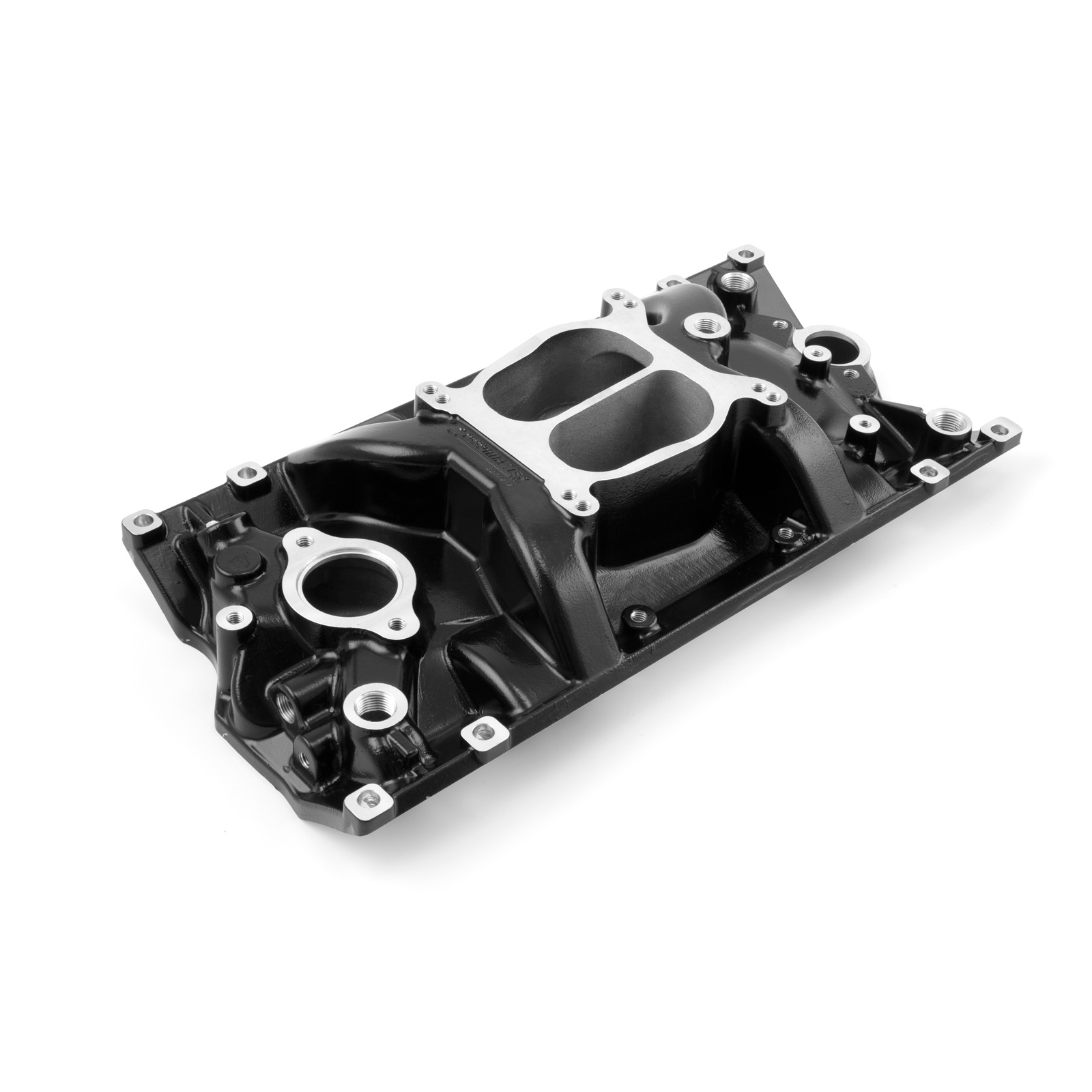

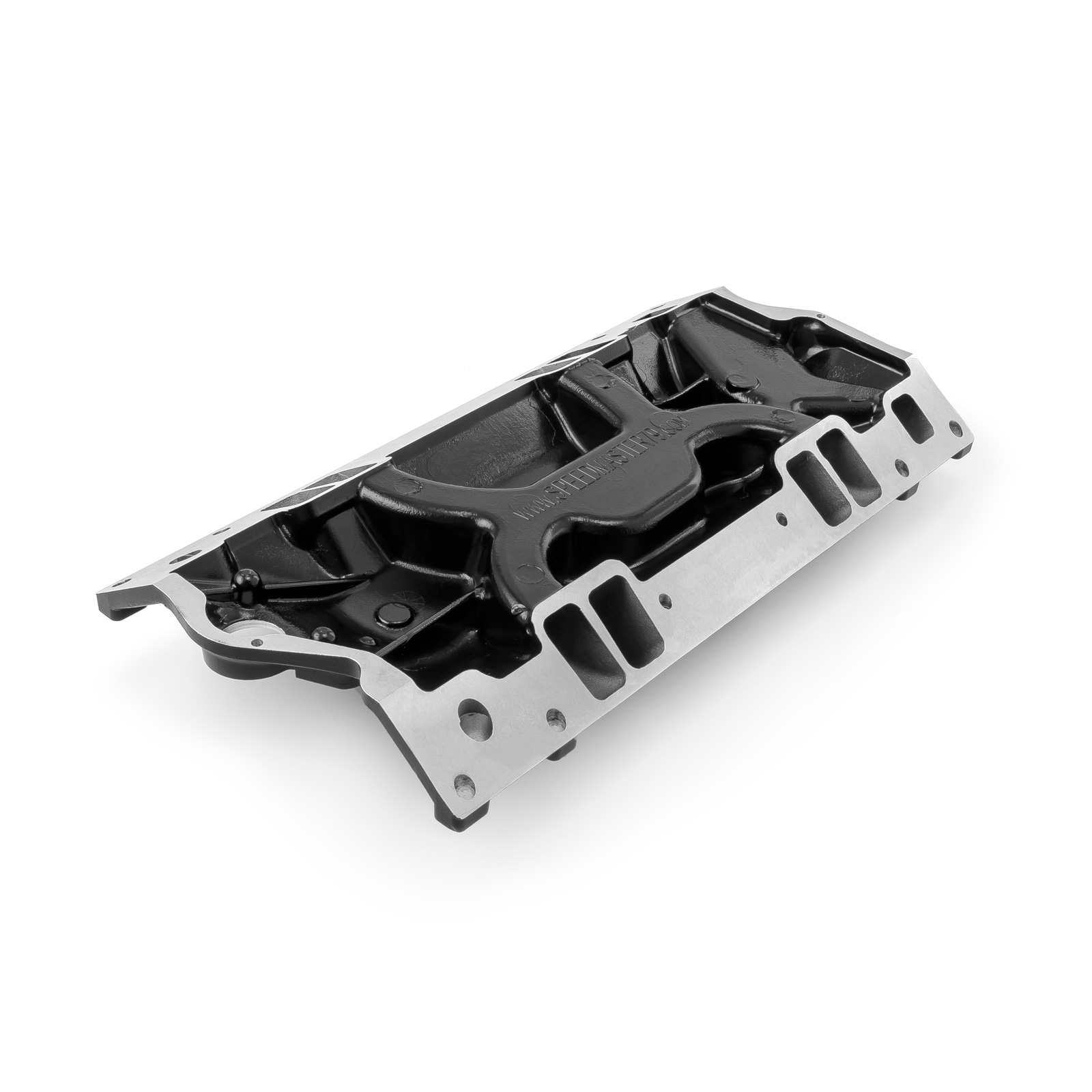

Chevy SBC 350 Vortec LowRise Intake Manifold [Black]

No Reviews yet
MPN: 1-147-006 UPC: 840136560487
Available Extended Warranty Eligible
US $289.00

In Stock - Ships within 24 hrs

Available: 146

Overview

The Speedmaster LowRise Manifolds are our lowest profile manifold and is also the only one that is street legal on pollution controlled vehicles. It is set up to accept a spread bore carb but comes with an adapter plate that permits the use of square bore carbs. To remain street legal with a square bore carb, you must use one that is also approved as street legal for your application.

Specs

Brand:Speedmaster
Part Number:1-147-006
Part Type:Intake Manifolds, Carbureted
Product Line:LowRise

Engine Block Style:Stock/OEM standard deck
Carburetor Quantity:One
Intake Style:Dual plane
Basic Operating RPM Range:Idle-5,500
Intake Manifold Height:4.250 in.
Intake Material:Aluminum
Intake Finish:Black
EGR:No
Quantity:Sold individually.
Calculator:CFM Calculator

Description

This Speedmaster LowRise manifold is designed to fit engine swaps using the 1996 and later Vortec (Gen 1+) cast iron heads or the Edelbrock E-Tec aluminum heads. These cylinder heads are very popular in street rods, engine swaps, or the industrial market. This manifold can be used on any Chevy V-8 engine utilizing the late Vortec head.

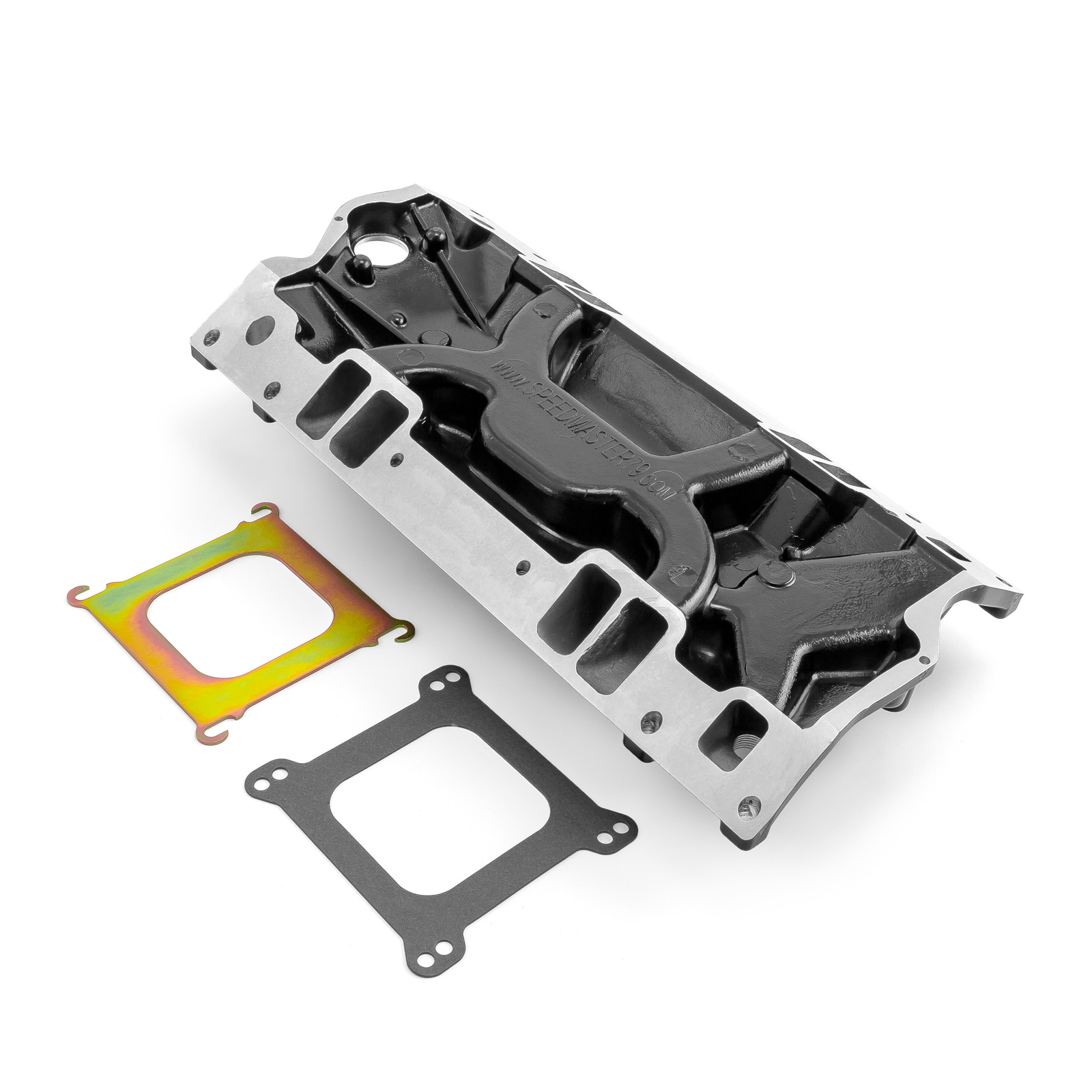

This manifold has provision for external water bypass. It also features four corner water outlets, dual distributor holddowns, includes a square bore carb adapter and gasket, and will work with a late model style water neck, alternator, HEI and air conditioning brackets. Will also fit 1996 and later Vortec engines with some minor modifications. The modification is not to the manifold itself. It just requires running a short section of heater hose from the pipe tapped hole in the front of the manifold to the 5/8" hose nipple on passenger's side of the water pump.

The 1966 and later Vortec blocks do not have a water bypass in the block and this hose takes care of that issue.

Brand Information

In 1979, the company was founded with Pete's Performance, which was a small speed workshop. It began by building engines for customers as a hobby, and it has now grown to include selling, assembling, manufacturing and racing high performance engine parts. Over the years, the company has grown into a worldwide high performance powerhouse. Growing from a one-man bricks-and-mortar business; to now a supply chain in which entails more than 400+ people all across the world. Today, Pete's Performance has evolved into the internationally known Speedmaster: which has distribution centres and offices is Sydney, Los Angeles and Shanghai.

Prop 65 Warning

This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
