Speedmaster®

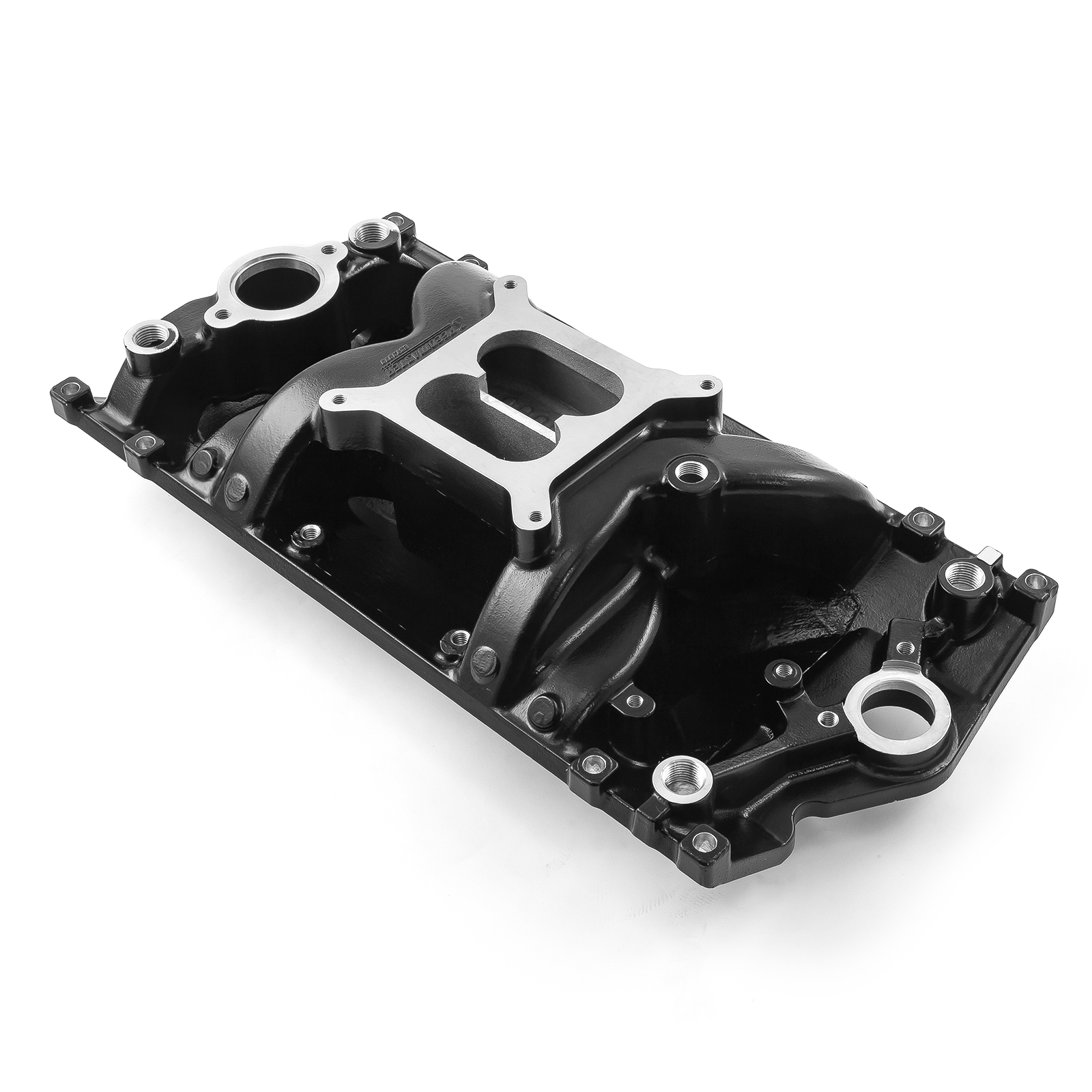

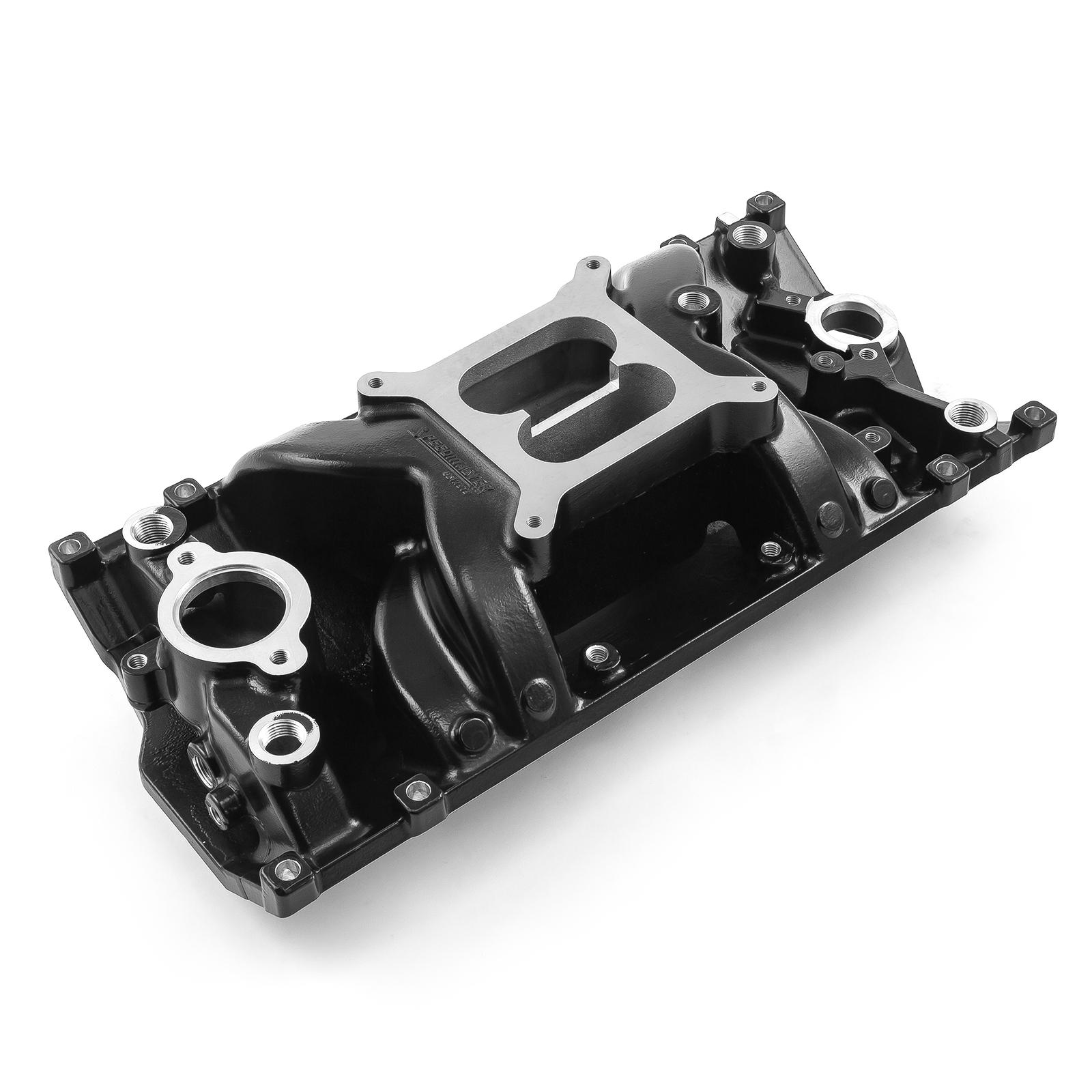

Chevy SBC 350 Vortec MidRise Air Intake Manifold [Black]

No Reviews yet
MPN: 1-147-012 UPC: 840136560524
Available Extended Warranty Eligible
US $324.00

In Stock - Ships within 24 hrs

Available: 111

Specs

Brand:Speedmaster
Part Number:1-147-012
Part Type:Intake Manifolds, Carbureted
Product Line:MidRise Air
Engine Block Style:Stock/OEM standard deck
Carburetor Quantity:One
Intake Style:Single plane with divider
Basic Operating RPM Range:1,500-6,500
Intake Manifold Height:4.650 in.
Intake Material:Aluminum
Intake Finish:Black
EGR:No
Quantity:Sold individually.
Calculator:CFM Calculator

Description

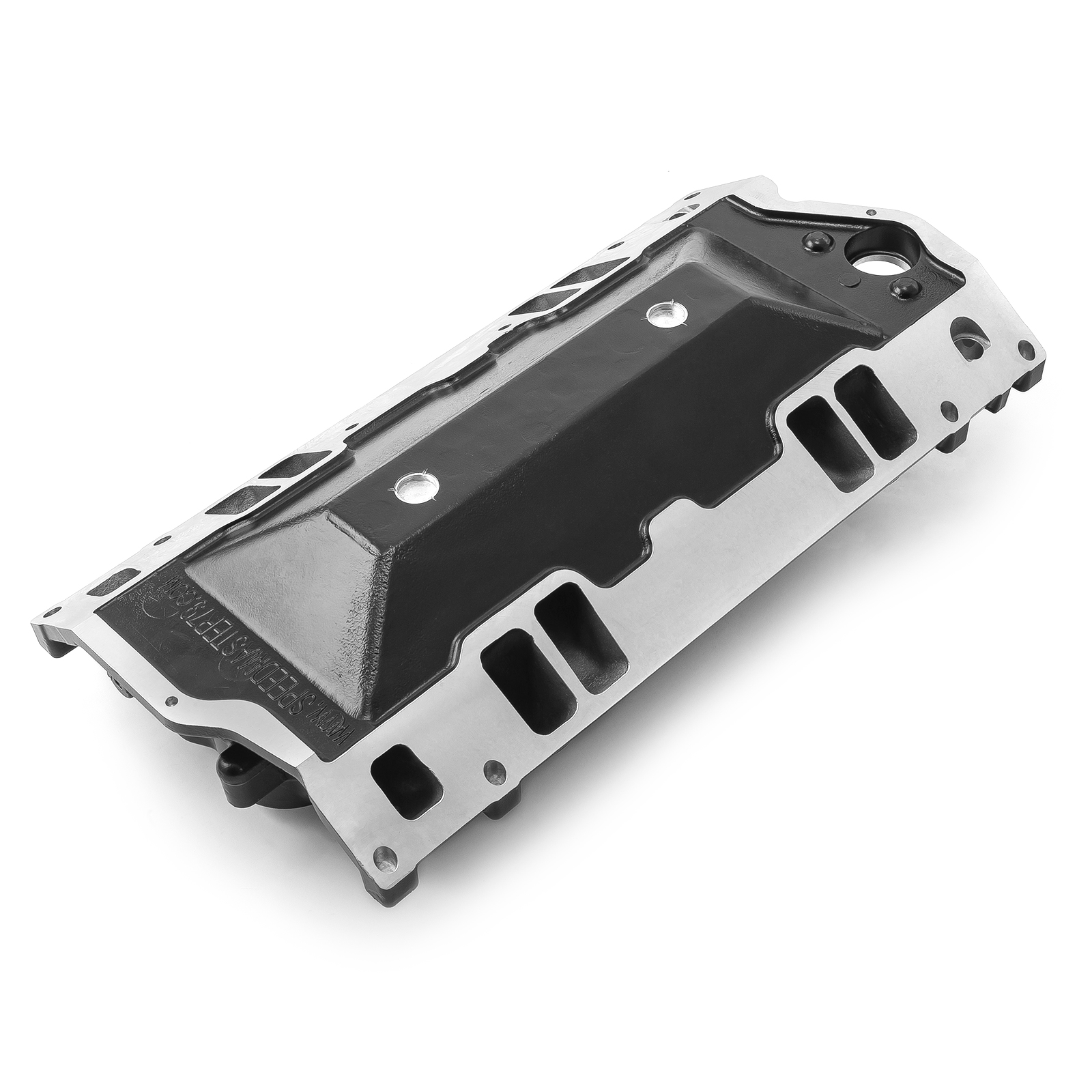

The Speedmaster MidRise Air design features the identical plenum and runner design as the normal MidRise. The main difference is that there is an open area under the plenum chamber. This feature is sometimes called an air gap design. The air flowing under the plenum provides a cooler charge for the incoming air with less heat transfer from the engine. This cooler air charge provides additional power and torque.

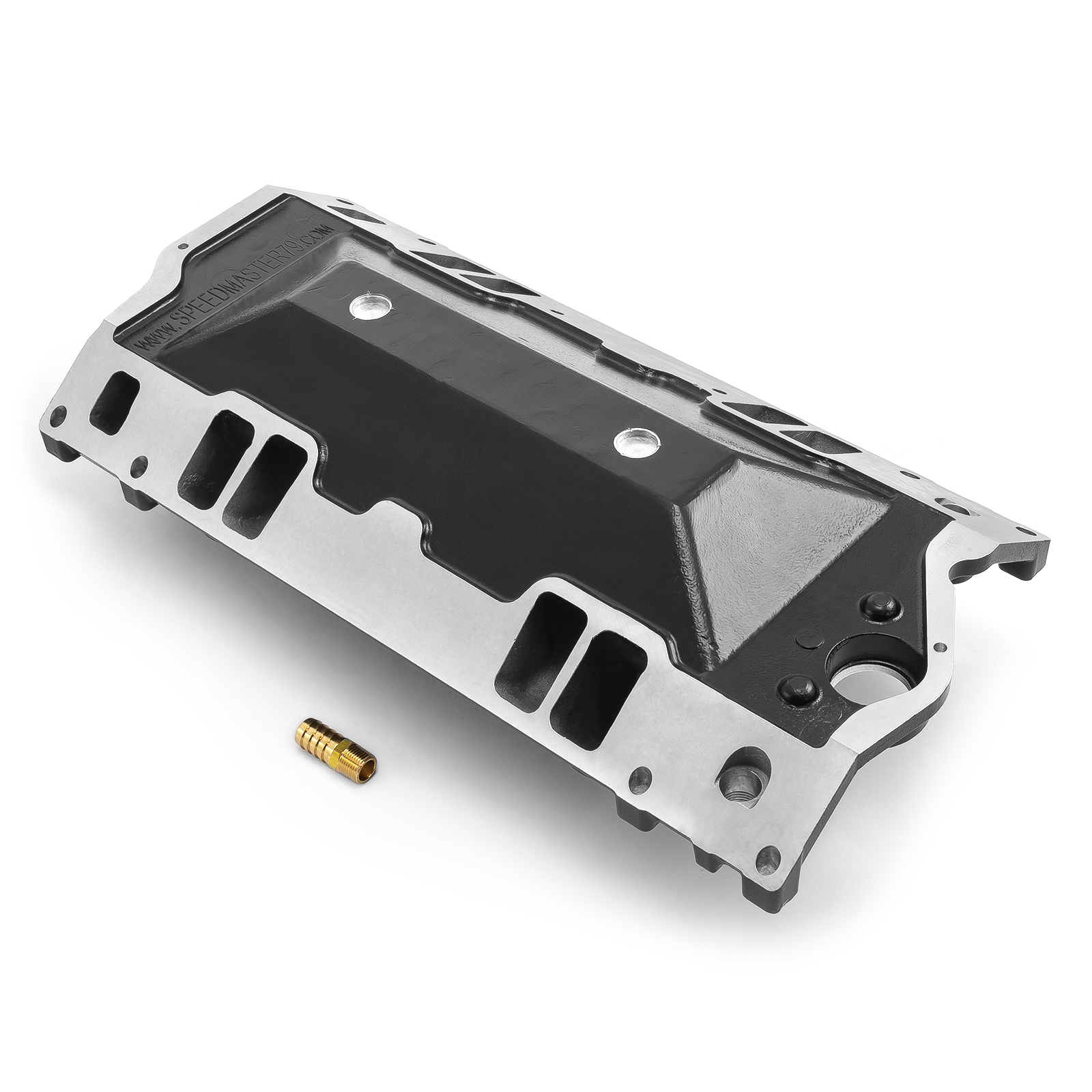

This Speedmaster MidRise Air for the Vortec features wider design to accommodate the Vortec design heads and also features the Vortec port configuration. The manifold also has a square bore carb pad to utilize the standard Holley, Carter and Edelbrock carburetors. This manifold is intended for use on up through -95 blocks using the 1996 and later Vortec (Gen 1+) heads or Edelbrock E-Tec heads. It can also be used on -96 and later Vortec engines with some minor modifications. The modification is not to the manifold itself. It just requires running a short section of heater hose from the pipe tapped hole in the front of the manifold to the 5/8" hose nipple on passenger's side of the water pump. The 1966 and later Vortec blocks do not have a water bypass in the block and this hose takes care of that issue.

Brand Information

Prop 65 Warning

This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
