Speedmaster®

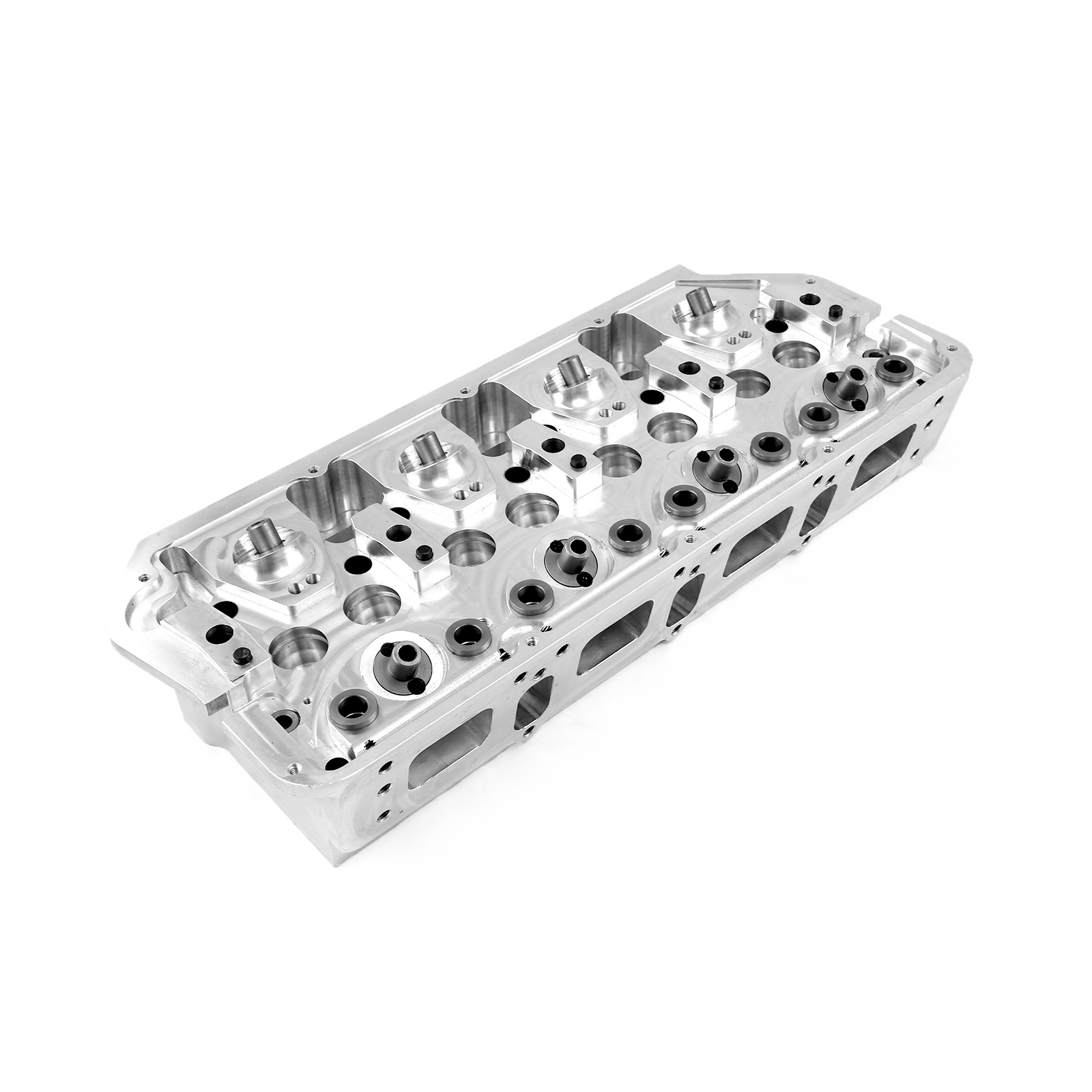

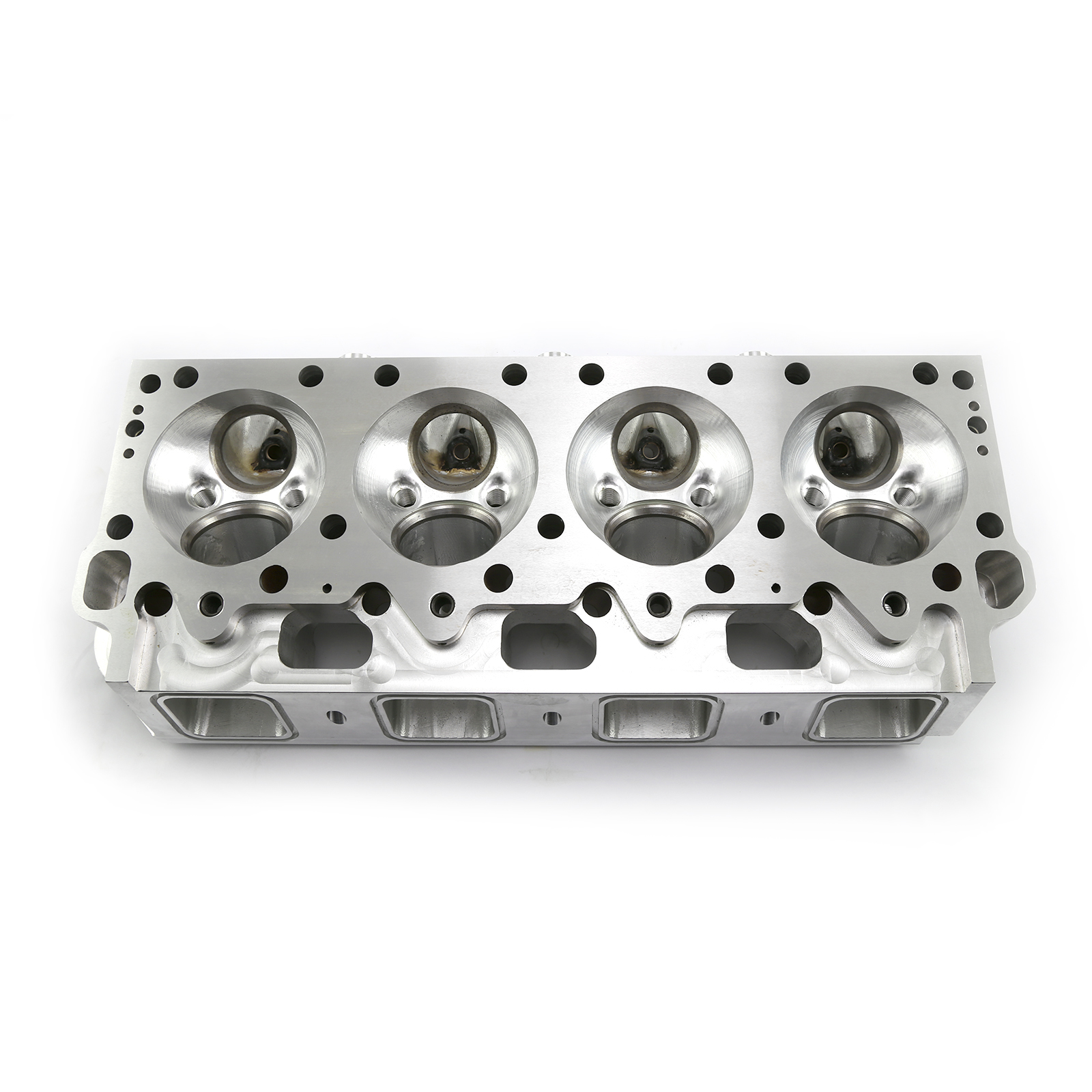

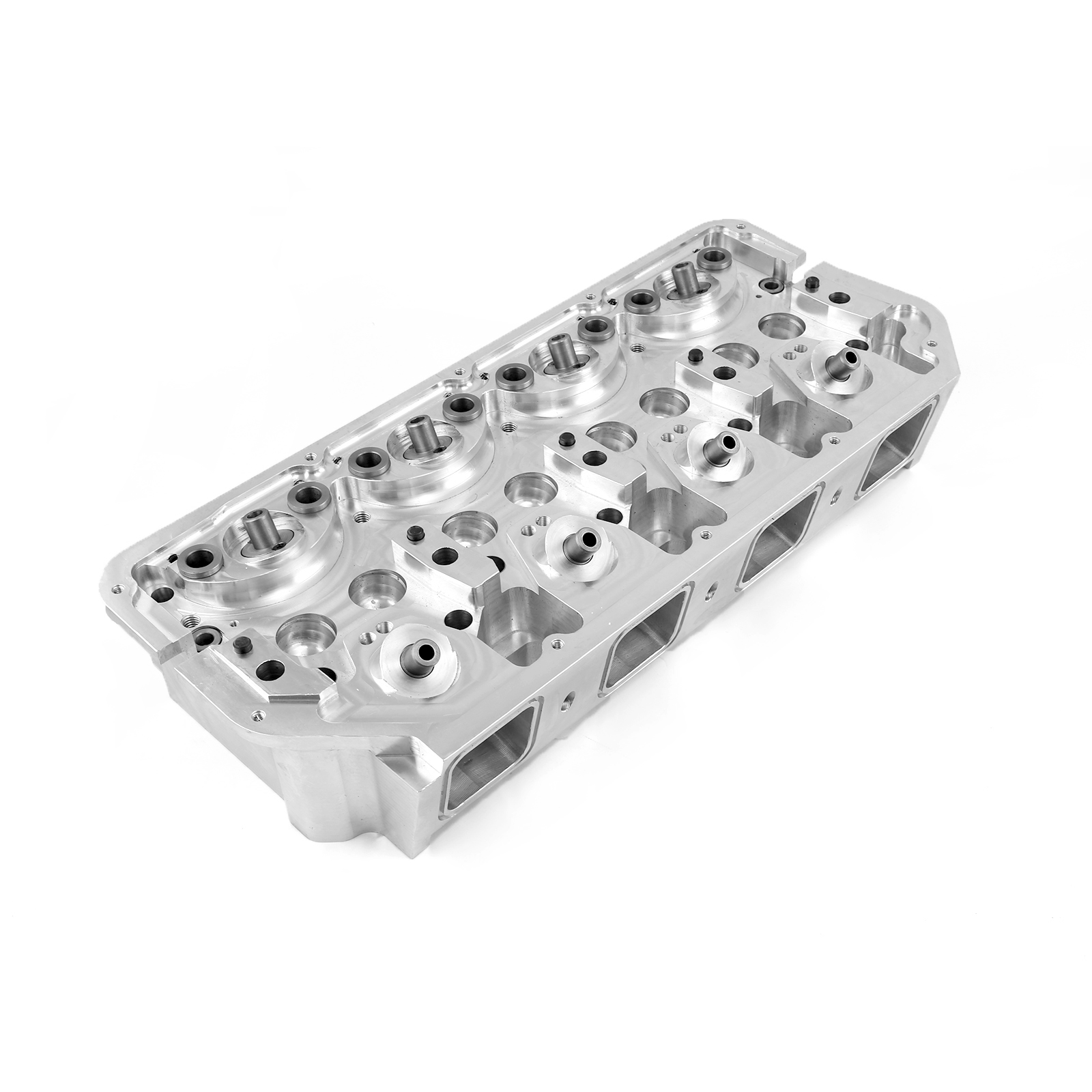

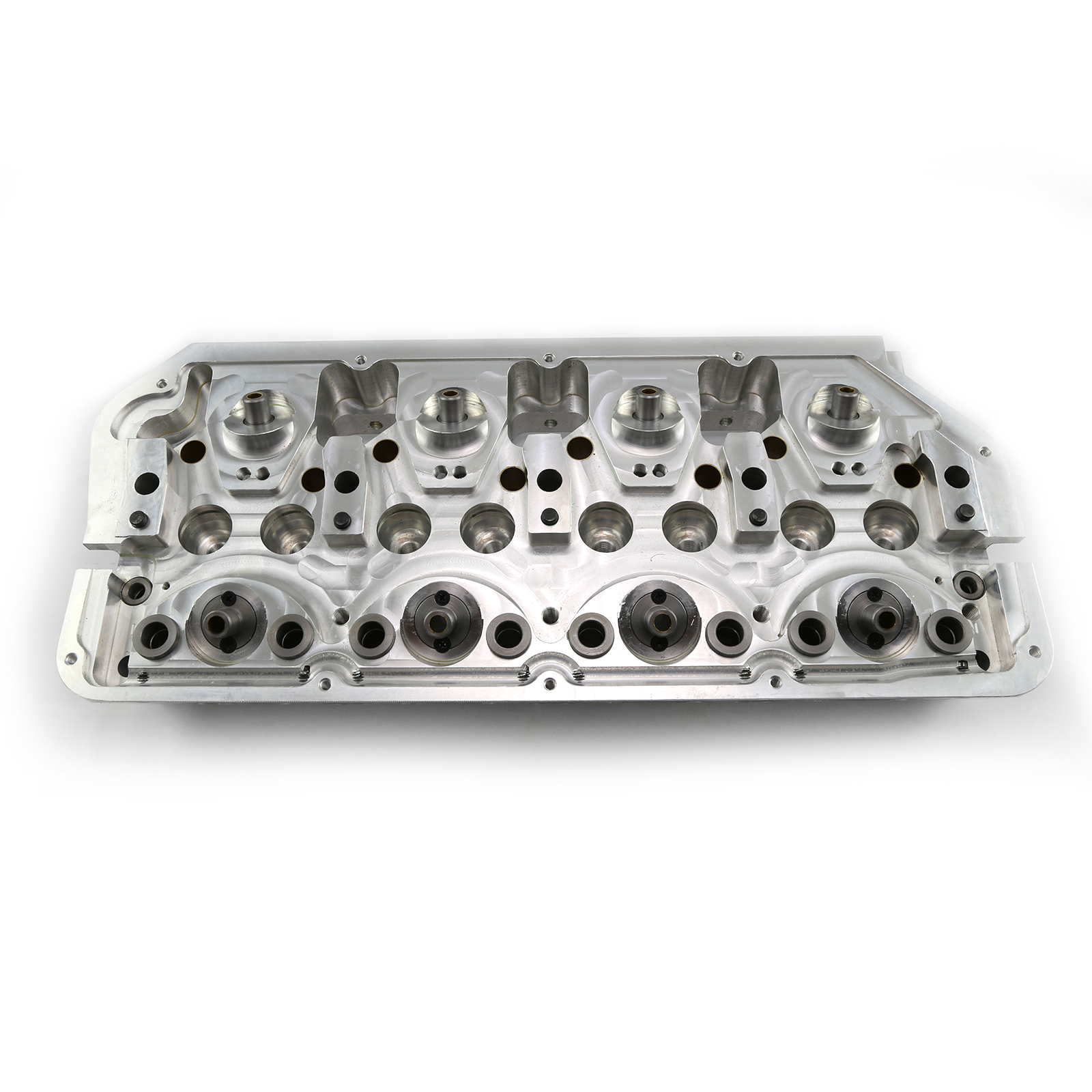

Hemi 426 572 Stage VI Top Fuel Head Billet Aluminum Bare Cylinder Head
Specs
| Brand: | Speedmaster |
| Part Number: | PCE281.1101 |
| Part Type: | Cylinder Heads |
| Cylinder Head Style: | Bare |
| Cylinder Head Material: | Billet Aluminum |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 200cc |
| CNC-Machined Combustion Chamber: | Yes |
| Intake Runner Volume (cc): | 333cc |
| Exhaust Runner Volume (cc): | 149cc |
| CNC-Machined Intake Runner: | Yes |
| CNC-Machined Exhaust Runner: | Yes |
| Intake Port Shape: | Square |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | Square |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Standard |
| Comp. Valve Job: | Yes |
| Intake Valves Included: | No |
| Intake Valve Diameter (in): | 2.450 in. |
| Exhaust Valves Included: | No |
| Exhaust Valve Diameter (in): | 1.925 in. |
| Valve Springs Included: | No |
| Damper Spring Included: | No |
| Retainers Included: | No |
| Locks Included: | No |
| Valve Stem Seals Included: | No |
| Rocker Arm Studs Included: | No |
| Rocker Arms Included: | No |
| Rocker Arm Nuts Included: | No |
| Guideplates Included: | No |
| Valve Cover Mounting Style: | Perimeter Bolt |
| Accessory Bolt Holes Drilled: | Yes |
| Intake Valve Angle: | Standard |
| Exhaust Valve Angle: | Standard |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Steel |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | No |
| Oiling Style: | Through pushrod |
| Machined for O-Ring: | No |
| Heat Crossover: | No |
| Quantity: | Sold individually. |
| Calculator: | Compression Calculator |
Description
These billet aluminum cylinder heads are direct bolt on replacements for high performance Chrysler 426 and 572 HEMI engines. They feature fully CNC machined combustion chambers and blended seats for increased air flow and well as revised exhaust valve angles for larger intake valves.
Brand Information
In 1979, the company was founded with Pete's Performance, which was a small speed workshop. It began by building engines for customers as a hobby, and it has now grown to include selling, assembling, manufacturing and racing high performance engine parts. Over the years, the company has grown into a worldwide high performance powerhouse. Growing from a one-man bricks-and-mortar business; to now a supply chain in which entails more than 400+ people all across the world. Today, Pete's Performance has evolved into the internationally known Speedmaster: which has distribution centres and offices is Sydney, Los Angeles and Shanghai.
