Speedmaster®

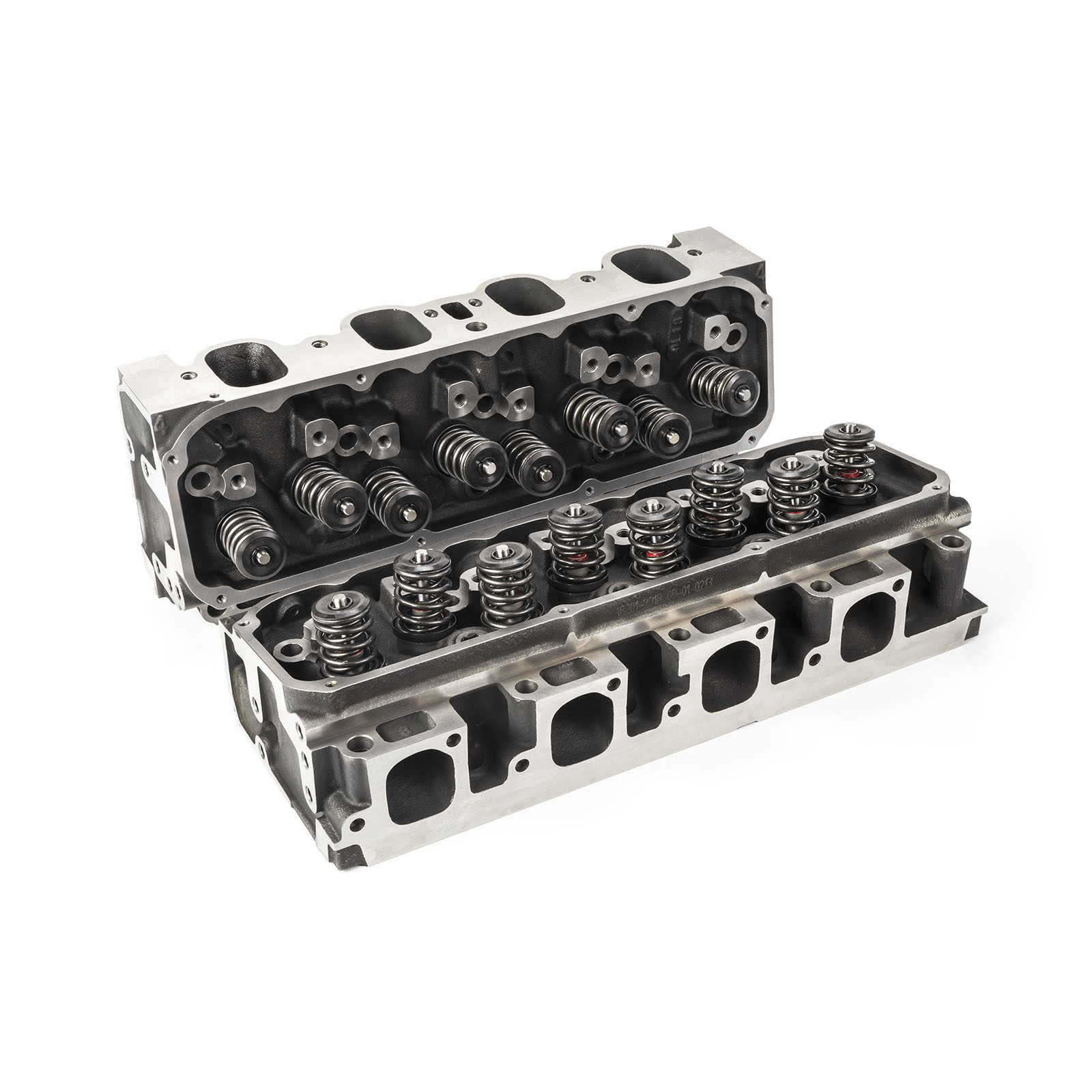

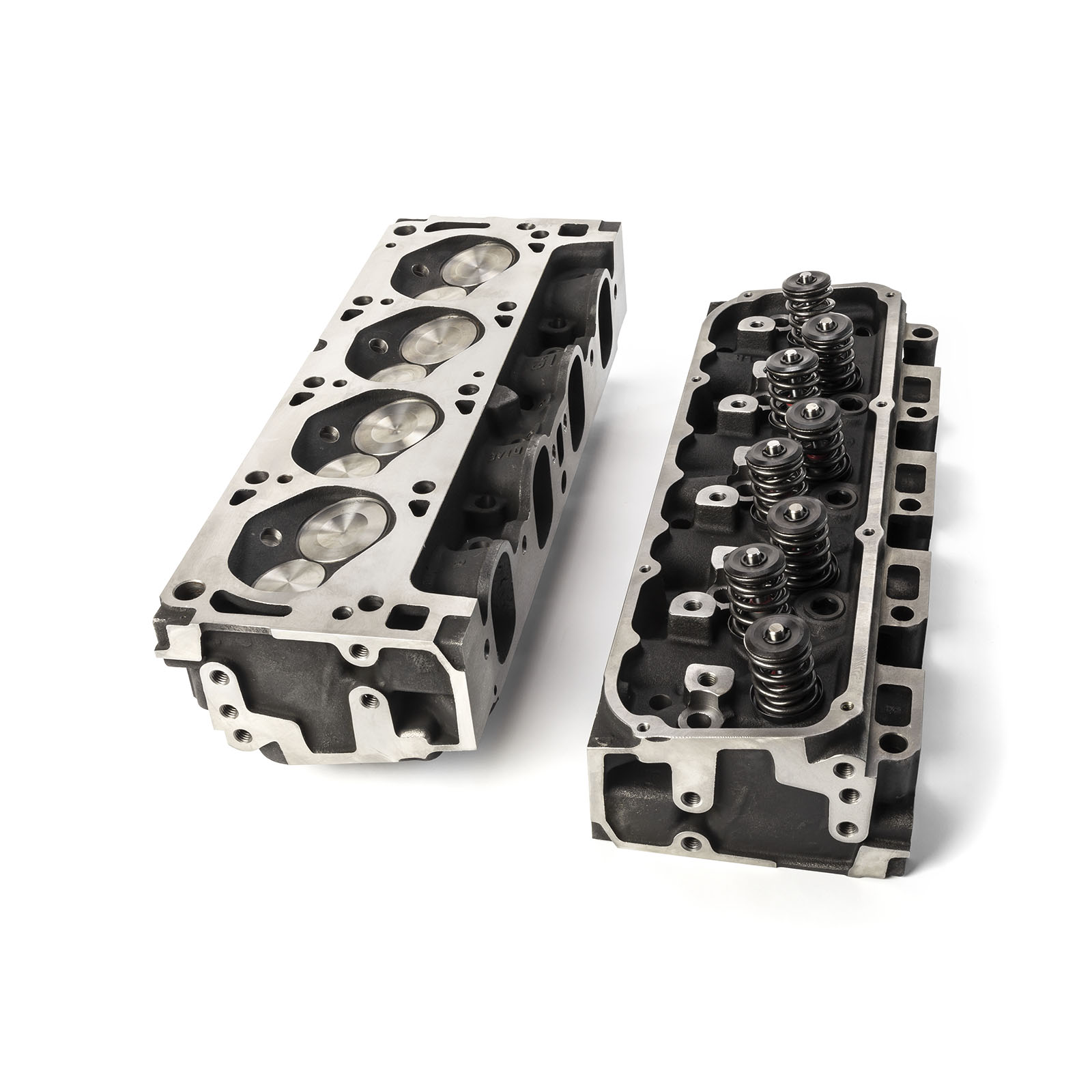

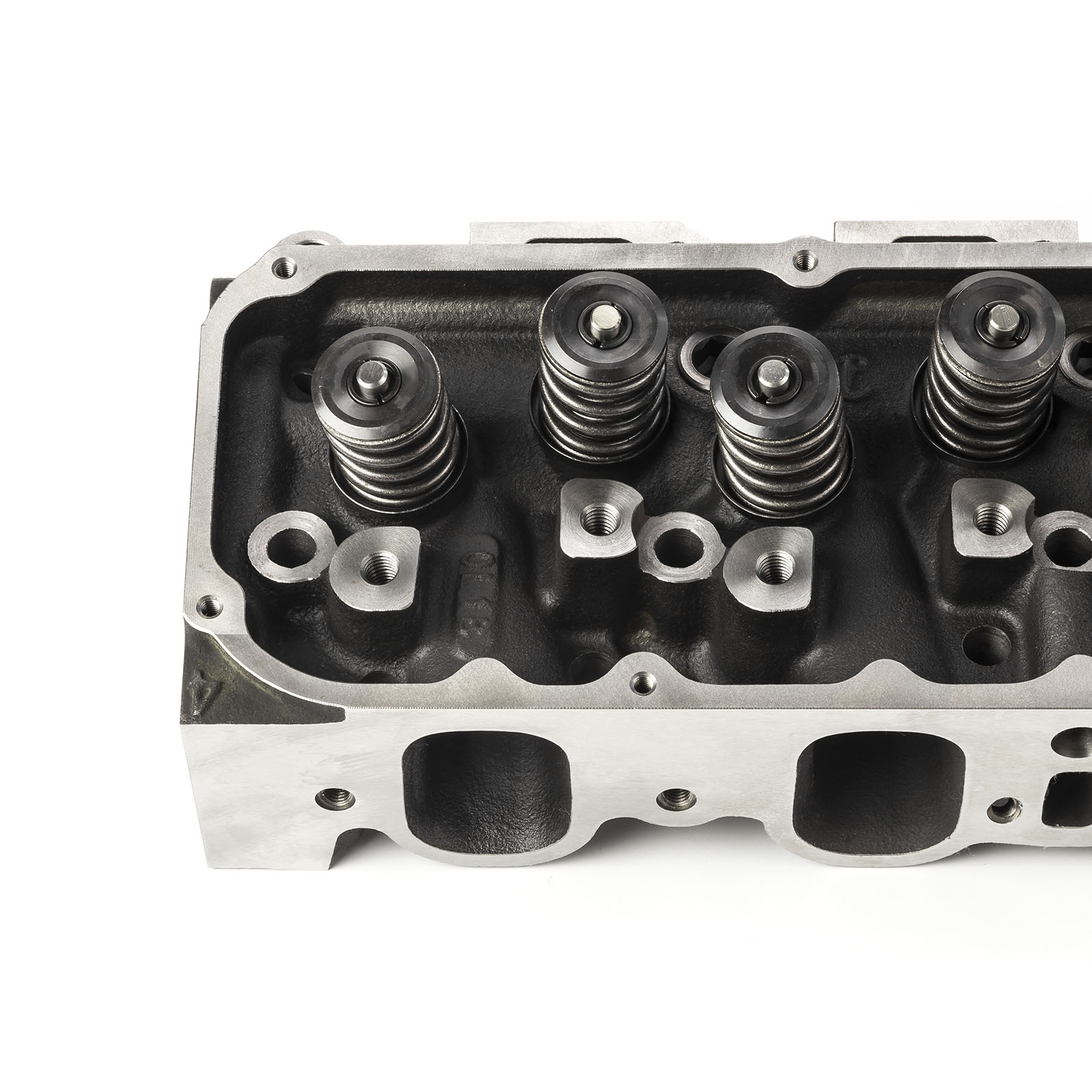

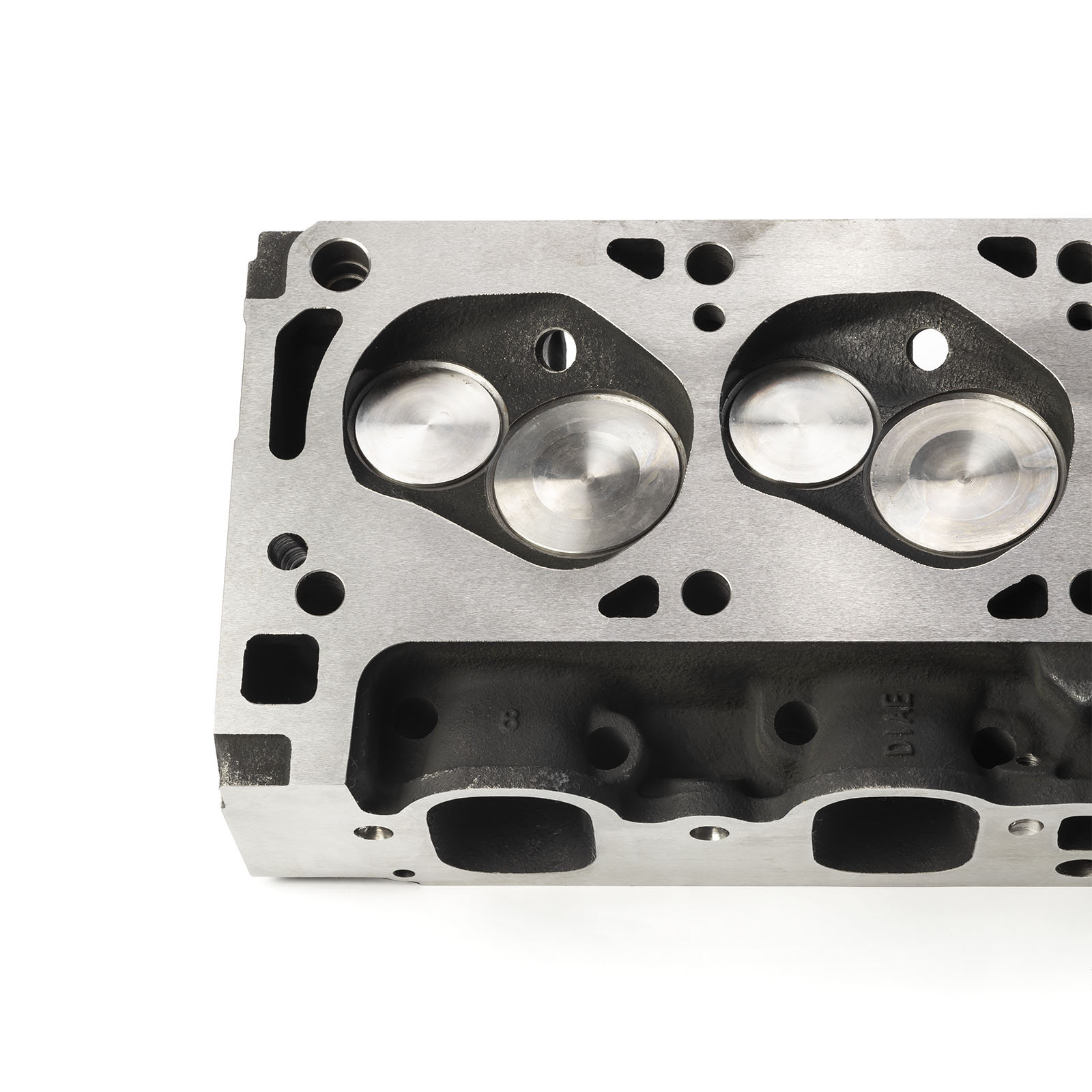

Ford 351 Cleveland 4V 254cc 64cc Hydraulic Flat Assembled Cylinder Heads

No Reviews yet
MPN: PCE281.2166 UPC: 840136532439
Available Extended Warranty Eligible
US $1,579.80

Out of Stock

Wear The Colors Promo

  • Free Keychain with Any Purchase

  • Spend $100 for a free Eco Bag

  • Spend $150 for a free Lanyard

  • Spend $250 for a free Wristband Keychain

*Get all 4 items when you spend $250 or more

Specs

Brand:Speedmaster
Part Number:PCE281.2166
Part Type:Cylinder Heads

Cylinder Head Style:Assembled
Cylinder Head Material:Cast Iron
Cylinder Head Finish:Natural
Combustion Chamber Volume (cc):64 cc
CNC-Machined Combustion Chamber:No
Intake Runner Volume (cc):254 cc
Exhaust Runner Volume (cc):n/a
CNC-Machined Intake Runner:No
CNC-Machined Exhaust Runner:No
Intake Port Shape:351c Standard
Intake Port Location:Standard
Exhaust Port Shape:351c Standard
Exhaust Port Location:Standard
Spark Plug Style:Standard
Comp. Valve Job:No
Intake Valves Included:Yes
Intake Valve Diameter (in):2.190 in.
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.710 in.
Valve Springs Included:Yes
Damper Spring Included:Yes
Retainers Included:Yes
Locks Included:Yes
Valve Stem Seals Included:Yes
Rocker Arm Studs Included:No
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:No
Valve Cover Mounting Style:Perimeter Bolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:Standard
Exhaust Valve Angle:Standard
Valve Guides Included:Yes
Valve Guide Material:Steel
Valve Seats Machined:Yes
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Steam Holes Drilled:N/A
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Quantity:Sold individually.
Calculator:Compression Calculator

Description

Assembly Specifications Max Lift: .580 Coil Bind: .740 Intake Install: 130lbs @ 1.8 Exhaust Install: 130lbs @ 1.8 Closed Sear Pressure: 125lbs Open Seat Pressure: 320lbs The Speedmaster Ford Cleveland cast irone heads are a perfect upgrade for both 2 and 4 barrel engines. Not only do you get more performance out of the box than OEM heads, but they retain the stock look. As another benefit, you can run higher compression with these heads before the onset of power robbing detonation. There is absolutely no reason to rebuild a set of OEM castings when you can buy a better performing, higher flowing and more detonation resistant cylinder head for less money from us! To top it all off, we offer aluminum and CNC ported Cleveland heads for people looking for even more performance. INTAKE / EXHAUST GASKETS All stock gaskets will work with these cylinder heads. The exhaust side of the head uses standard 4v exhaust gaskets. You can use Speedmaster SM3274 or Fel-Pro 1416 header gaskets which measure 1.89 (W) x 2.19 (T). HEAD GASKETS The Speedmaster PCE281.1703, PCE281.1714, PCE281.1724 and PCE281.1726 cylinder heads use the following head gaskets for use with 351C block: Speedmaster PCE348.1005 (MLS 4.055 gasket bore) Fel-Pro 1013 (Composite 4.100 gasket bore) Both gaskets are .040 thickness when compressed. HEAD BOLTS / STUDS Use Speedmaster PCE279.1014. These studs should only be finger tightened into the block. Torque the nuts to stock specifications. using high pressure moly lube, in increments of 15lbs. SPARKPLUGS Our Ford Cleveland cylinder heads require the use of a 14mm. thread 5/8 hex, .750 reach spark plugs. Below you will find a list of some plugs that fit and work with our heads: NGK - BCPR6ES, R5671A-7, R5671A-8 Autolite - 3923, 3924, AR3933, AR3934 Champion - RC12YC, RC10YC4, RC9YC3 Remember that you need a COLDER plug when you make more power, ie. N2O, Turbo and supercharging.
