Speedmaster®

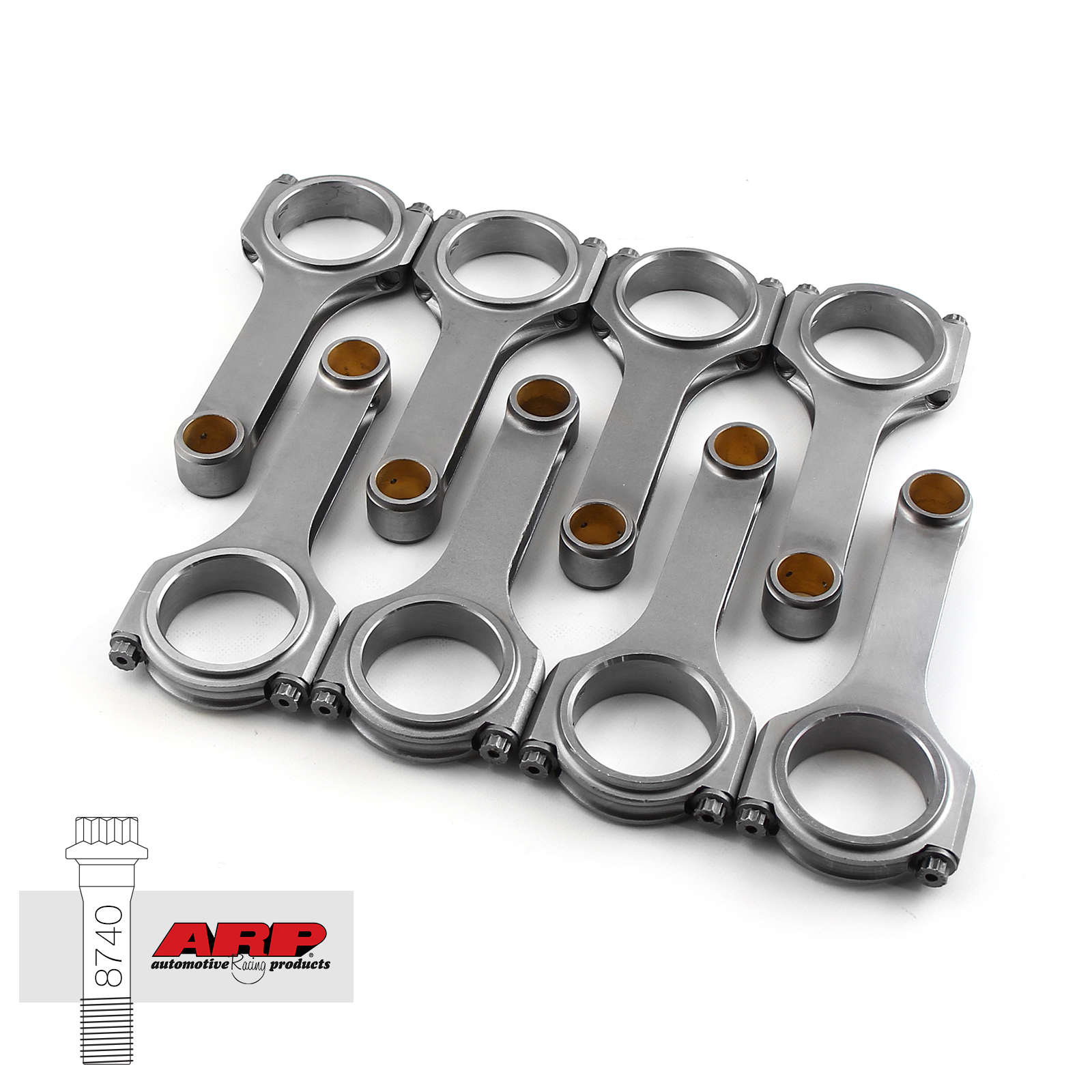

H Beam 6.000" 2.100" .927" 4340 Connecting Rods Chevy SBC 350 w/ ARP 2000

No Reviews yet
MPN: 1-274-037 UPC: 840136562184
Available Extended Warranty Eligible
US $615.00

Build to Order

Overview

Speedmaster H-beam connecting rods are one of the strongest connecting rods available. Speedmaster H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications.

Specs

Brand:Speedmaster
Part Number:1-274-037
Part Type:Connecting Rods
Connecting Rod Length Center to Center (in):6.000 in.
Connecting Rod Beam Style:H-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:2000 chromoly steel
Fastener Yield Strength (psi):200,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):670g
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):2.2250 in.
Pin End Bore Diameter (in):0.927 in.
Big End Width (in):0.945 in.
Advertised Horsepower Rating (hp):750 hp
Advertised RPM Rating:7,500 rpm
Weight Matched Set:Yes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8.
Tool:Stroker Combinations

Description

Speedmaster H-beam connecting rods are manufactured from aircraft quality 4340 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved.

ARP connecting rod bolts are precision CNC-machined to exacting specifications and designed for optimum reliability. They are heat-treated and threads are rolled to provide up to ten times more fatigue strength. This makes them far superior to standard OEM fasteners in terms of durability, and fully capable of handling the extra stress of high-combustion engines.
