Speedmaster®

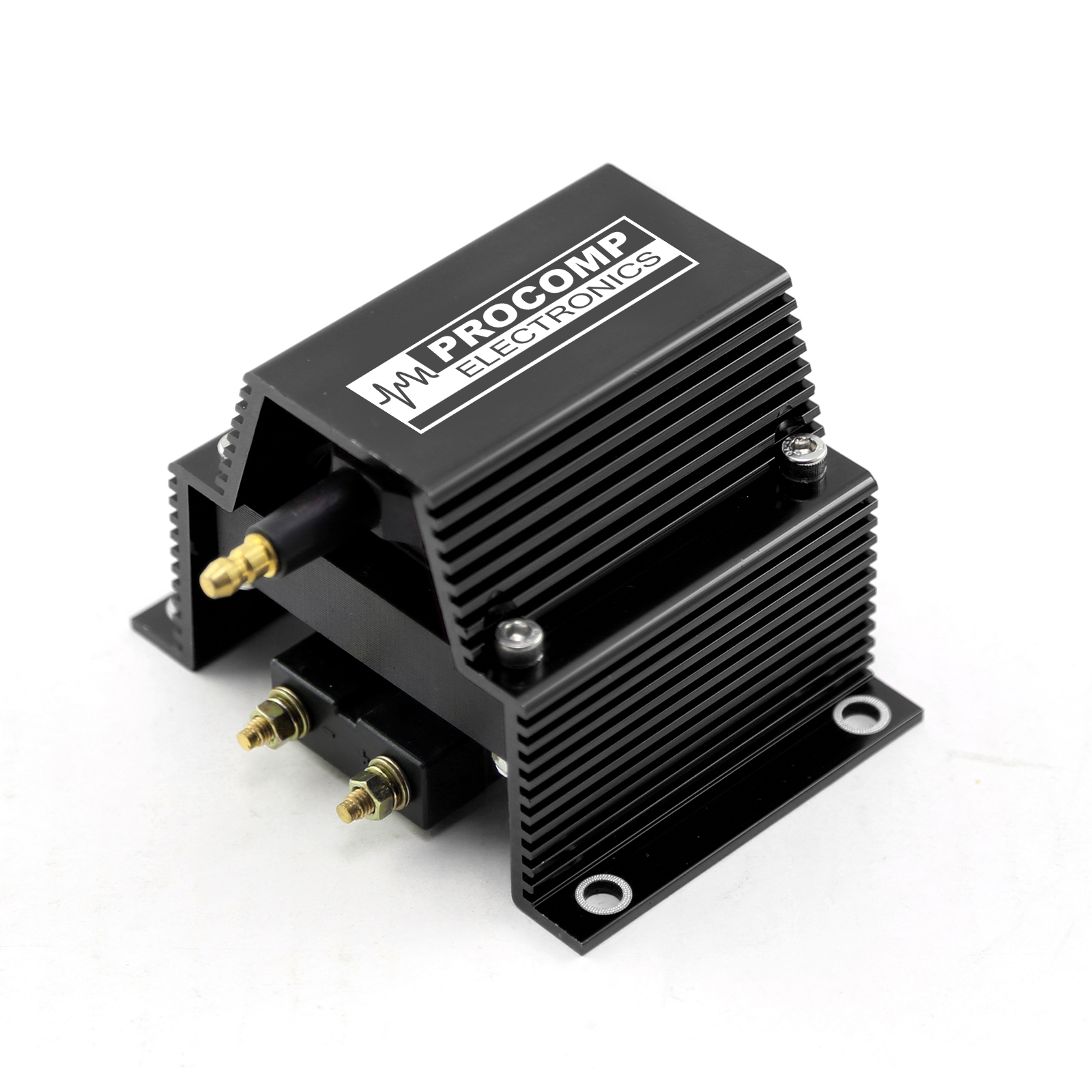

Universal Pc91 12V High Output External Male E-Core Ignition Coil - Black
Specs
Brand: | PCE |
Part Number: | PCE382.1009 |
Part Type: | Ignition Coils |
Coil Wire Attachment: | Male/HEI |
Coil Style: | E-core |
Primary Resistance: | 0.450 ohms |
Coil Internal Construction: | Epoxy |
Coil Color: | Black |
Maximum Voltage: | 60,000 V |
Turns Ratio: | 100:1 |
Secondary Resistance: | 3.80K ohms |
Inductance: | 6.6 mH |
Peak Current: | 280 mA |
Spark Duration: | 225 uS |
Mounting Bracket Included: | No |
Coil Wire Included: | No |
Ballast Resistor Included: | No |
Coil Shape: | Square |
Quantity: | Sold individually. |
Description
The PC - 91 technology coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw on connectors and a high tension tower. Ideal for use with capacitive discharge (CD) ignition systems and all of PCE range of High Output Ignitions.
Brand Information
In 1979, the company was founded with Pete's Performance, which was a small speed workshop. It began by building engines for customers as a hobby, and it has now grown to include selling, assembling, manufacturing and racing high performance engine parts. Over the years, the company has grown into a worldwide high performance powerhouse. Growing from a one-man bricks-and-mortar business; to now a supply chain in which entails more than 400+ people all across the world. Today, Pete's Performance has evolved into the internationally known Speedmaster: which has distribution centres and offices is Sydney, Los Angeles and Shanghai.
SUB-BRAND
Founded in Sydney Australia with one CNC Machine increasing to sixty 5-Axis CNC machines before being acquired in 2013. The Company's main focus has always been "Speed to Market", launching 1,200+ new products each year. Needing just one month to develop a new product and get it on to the shelf, compared to the six-month industry average. PCE has a policy of zero advertising, preferring to invest a percentage of revenues in new product development. These products being white-labeled to most of the biggest brands in the business.
